SEUIC (Dongji) / Fixed RFID readers

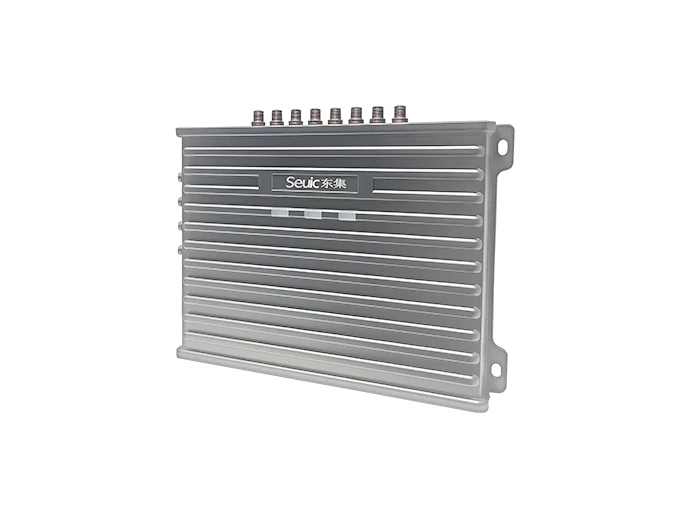

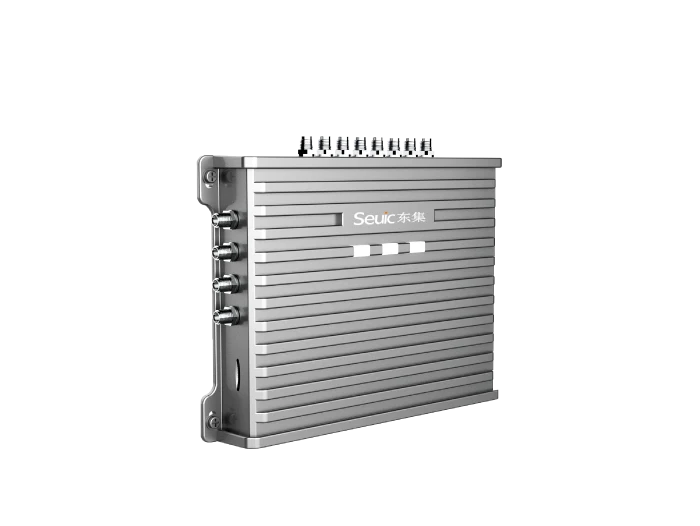

AUTOID UF3-S: Fixed RFID readers
AUTOID UF3-S is listed in the fixed rfid readers portfolio for fixed-point RFID visibility. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: portal, shelf, workstation and fixed-point RFID deployments
- CPU
- Cortex-A53 Quad Core 1.3 GHz
- storage
- 2GB+16GB
- Output power
- 0-33dBm adjustable, +/-1.0dBm
- Communication protocol
- TCP/IP, RS232, WIFI (2.4G/5G dual-band, IEEE802.11a/b/g/n), 4G full network
- Weight |
- ≤600g (bare metal) ≤1.2Kg (packaged)
- tag protocol
- EPC C1 GEN2 / ISO18000-6C
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where AUTOID UF3-S fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Dock-door and portal reads
- Shelf or cabinet visibility
- Workstation and conveyor identification
Key capabilities
- A fixed RFID reader entry; antenna layout, reader density, cabling and RF environment must be validated on site.
- Portfolio fit: portal, shelf, workstation and fixed-point RFID deployments.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| CPU | Cortex-A53 Quad Core 1.3 GHz |
|---|---|
| operating system | Android 10.0 |
| storage | 2GB+16GB |
Connectivity
| Communication protocol | TCP/IP, RS232, WIFI (2.4G/5G dual-band, IEEE802.11a/b/g/n), 4G full network |
|---|
Power and physical
| Isolation of each antenna port | ≥30dB (within working frequency band) |
|---|---|
| Output power | 0-33dBm adjustable, +/-1.0dBm |

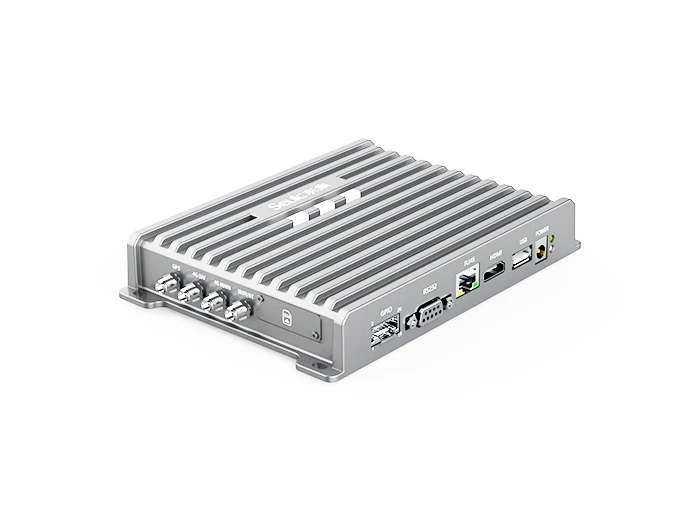

| interface | 8*SMA antenna interface, GPS antenna, 4G main and auxiliary antenna interface, WIFI, 4G SIM card slot, DC 9~24V, 4*USB 2.0, HDMI D Type interface (1920x1080P high-definition format video output), RJ45 (100.0Mbps), RS232 (DB9 Female), GPIO, system reset RESET |
| Power supply | 9-24VDC, POE powered |
| Power consumption | ≤1.5A (12V power supply) |
| Weight | | ≤600g (bare metal) ≤1.2Kg (packaged) |
Environmental
| Environmental characteristics | Working temperature: -20℃ to +60℃, storage temperature: -40℃ to +85℃, working humidity: 5%~95%RH, no condensation |
|---|
Other configuration
| tag protocol | EPC C1 GEN2 / ISO18000-6C |
|---|---|
| Working frequency | 840Mhz – 960Mhz (can be adjusted according to the requirements of different countries or regions) |
| Receive sensitivity | ≤-80dbm |
| Multi-label performance | >700 pictures/second (8dBi, 3m feeder) |
| Read tag performance | >8m (9662 white card, outdoor open environment, 8dBi, 3m feeder) |
| Write tag performance | >4m (9662 white card, outdoor open environment, 8dBi, 3m feeder) |
| Input and output | Supports multiple optocoupler isolated GPIOs, 4 inputs, 4 outputs, isolation voltage VRMS>3kV, external voltage range 5-24V |
| POE | Supports IEEE802.3-AF protocol, input voltage DC44v-57v, power 30w, power supply core 12+, 36-, transmission distance 10-100m |
| Waterproof and dustproof industrial grade | IP54 |
| size | 180(H)×128(W)×28(T) mm |
| Kind tips | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Plan antennas, brackets, cables, power, network, enclosure and commissioning support for the installation.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
