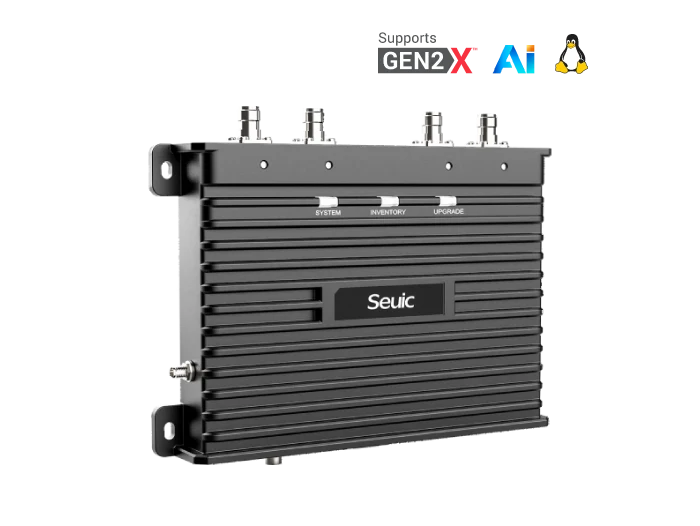

AUTOID UF40 Linux AI: Fixed RFID readers
AUTOID UF40 Linux AI is listed in the fixed rfid readers portfolio for fixed-point RFID visibility. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: portal, shelf, workstation and fixed-point RFID deployments
- CPU
- Cortex-A53 Quad Core 2.0 GHz
- storage
- 2GB+32GB
- Maximum reading speed
- Up to 1300 pictures/second
- Output power range |
- 1-33dBm adjustable
- Communication protocol |
- TCP/IP, RS232, WIFI (2.4G/5G dual-band, IEEE802.11a/b/g/n/ac), 4G full Netcom (optional)
- weight
- ≤1160g (bare metal) ≤1850g (packaged)
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where AUTOID UF40 Linux AI fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Dock-door and portal reads
- Shelf or cabinet visibility
- Workstation and conveyor identification
Key capabilities
- A fixed RFID reader entry; antenna layout, reader density, cabling and RF environment must be validated on site.
- Portfolio fit: portal, shelf, workstation and fixed-point RFID deployments.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| CPU | Cortex-A53 Quad Core 2.0 GHz |
|---|---|
| operating system | | Linux 5.4 |
| storage | 2GB+32GB |
Data capture
| Maximum reading speed | Up to 1300 pictures/second |
|---|---|
| reading distance | >10m (9662 white card, 30dbm, outdoor open environment, 9dBiC circularly polarized antenna) |
Connectivity
| Communication protocol | | TCP/IP, RS232, WIFI (2.4G/5G dual-band, IEEE802.11a/b/g/n/ac), 4G full Netcom (optional) |
|---|
Power and physical
| Output power range | | 1-33dBm adjustable |
|---|---|
| Power adjustment step | 1dB |

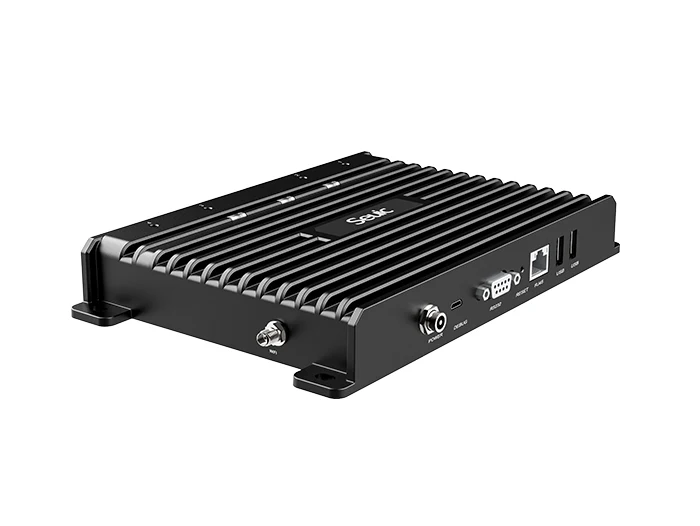

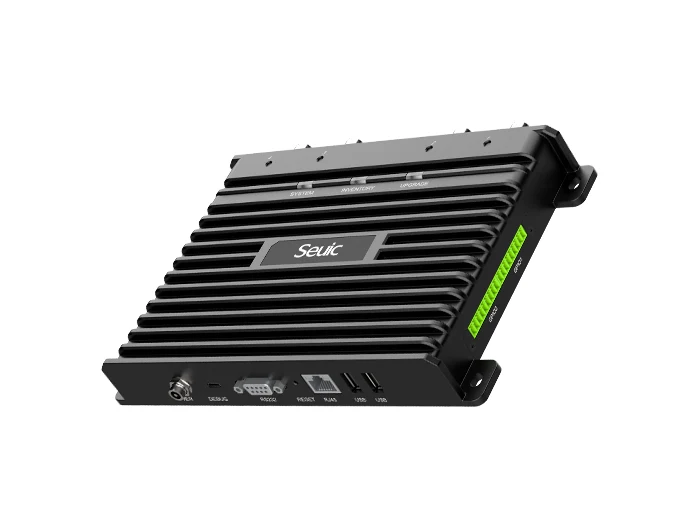

| Interface | | RP-TNC×4, WIFI, 4G SIM card slot, DC 12~48V, USB 2.0×2, RJ45 (1000M/100M/10M adaptive), RS232 (DB9 Female), Debug interface, system reset RESET |
| Power supply | | 12-48VDC, standard adapter 24V/2A, supports POE power supply |
| Power consumption | ≤1.5A (24V power supply) |
| weight | ≤1160g (bare metal) ≤1850g (packaged) |
Environmental
| Environmental characteristics | Working temperature: -20℃ to +60℃; Storage temperature: -25℃ to +80℃; Working humidity: 5%~95%RH, no condensation |
|---|
Other configuration
| tag protocol | EPC Class1 Gen2/EPC Class1 Gen2X/ISO18000-6C |
|---|---|
| Working frequency | 860Mhz – 930Mhz (can be adjusted according to the requirements of different countries or regions) |
| Maximum receiving sensitivity | -87dbm (Gen2 protocol), -93dbm (Gen2X protocol) |
| write performance | >5m (9662 white card, 30dbm, outdoor open environment, 9dBiC circular polarization antenna) |

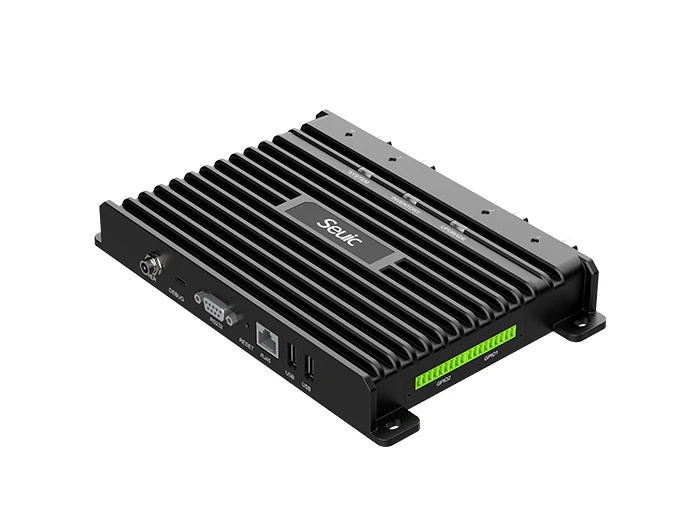

| Input and output | Supports multiple GPIOs, 4 inputs, 4 outputs · Output: Output1: relay output, rated load 30V/1A, Oouput2~4: GPIO self-powered, voltage equal to input voltage, rated current: 0.75A · Input: Optocoupler isolation, supports external power supply, the highest support is 48V, the lowest is 4V |
| POE | Supports IEEE802.3-AT and IEEE802.3-AF protocols (using 3-meter Category 5e network cable, using 803.af mode for power supply, with a load of ≥13W; using 803.at mode for power supply, with a load of ≥25W) |
| Waterproof and dustproof industrial grade | | IP54 |
| size | 230(H)×150(W)×32(T)mm |
| Kind tips | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
