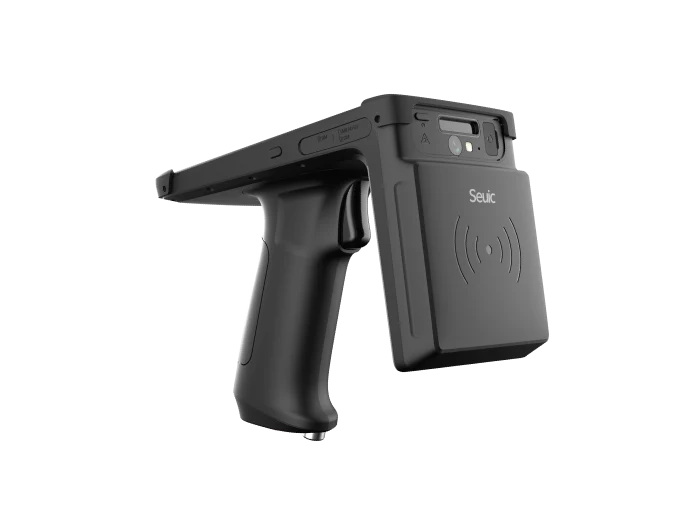

AUTOID UTouch: Handheld RFID readers
AUTOID UTouch is listed in the handheld rfid readers portfolio for mobile RFID inventory and item identification. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: mobile UHF RFID inventory and asset workflows
- Display
- 5.2 inches 1920*1080, 5.0 inches 1280*720
- RFID read/write (HF) (optional) |
- Support ISO15693, ISO14443A/B (without encryption protocol), ISO14443A tags with encryption protocol (Mifare one S50, S70 and compatible cards), support NFC protocol · Support ISO15693, ISO14443A/B (without encryption protocol), ISO14443A tags with encryption protocol (Mifare one S50, S70 and compatible cards), support NFC protocol
- Power | |
- 6400mAh lithium battery is removable, Type C USB interface at the bottom, supports QC3.0 fast charging, intelligently identifies PC and charger, supports handle charging stand charging
- Drop specifications |
- 1.5 meters
- Interface/Communication |
- Waterproof Type C USB interface, supports USB2.0 HighSpeed, supports OTG
- weight
- 480g (including battery, varies according to different configurations)
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where AUTOID UTouch fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Cycle counts and stock checks
- Asset audits and tool tracking
- Returns, receiving and exception handling
Key capabilities
- A handheld RFID reader entry; region-specific frequency, antenna, read behavior and host integration require testing.
- Portfolio fit: mobile UHF RFID inventory and asset workflows.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Display | 5.2 inches 1920*1080, 5.0 inches 1280*720 |
|---|---|
| CPU | Operating System | Cortex-A53 Octa-Core 1.8 GHz · Android 11.0 |
| User Storage Extension | | Micro SD Card, compatible with up to 128GB |
| Storage | | 4GB+64GB |
| Operating temperature | | -20℃ to +50℃ |
| Storage temperature | | -40℃ to +50℃ (including battery), -40℃ to +70℃ (without battery) |
| Electrostatic discharge (ESD) | | ±15kV air discharge, ±8kV direct discharge |
| Antenna parameters | 4dBi circular polarization, default is 920-925MHz |
Data capture
| Sensor | | Acceleration sensor, gyroscope, electronic compass, light & distance sensor |
|---|---|
| RFID read/write (HF) (optional) | | Support ISO15693, ISO14443A/B (without encryption protocol), ISO14443A tags with encryption protocol (Mifare one S50, S70 and compatible cards), support NFC protocol · Support ISO15693, ISO14443A/B (without encryption protocol), ISO14443A tags with encryption protocol (Mifare one S50, S70 and compatible cards), support NFC protocol |
| Reading distance | ≥8m @impinj H47 (the practical distance is affected by the label and environment) |
| Group reading speed | Up to 900 times/second @impinj H47 (the actual distance is affected by the tag and environment) |
| Card reading speed | Average reading time per word (32bits) 12ms |
Connectivity
| Interface/Communication | | Waterproof Type C USB interface, supports USB2.0 HighSpeed, supports OTG |
|---|---|
| SIM interface | | Micro SIM card*1 + PSAM card*1 |
| Wireless LAN WIFI | Protocol | IEEE 802.11a/b/g/n/ac (2.4G/5G dual-band WIFI) protocol |
| Wireless LAN WIFI | Frequency range | Depends on the country (region), 2.4GHz is 2.412GHz-2.472 GHz; 5GHz is 5.170GHz-5.825GHz |
| Wireless WAN Full Netcom (7 modes and 18 frequencies) | Frequency | GSM：Qual Band(850/900/1800/1900Mhz) · TD-SCDMA：Band34,Band39 · WCDMA：Band1，Band2，Band5，Band8 · CDMA 1x /EVDO ：BC0 · TDD-LTE：Band38，Band39，Band40，Band41 · FDD-LTE：Band1，Band3，Band5，Band7，Band8 |
Power and physical
| weight | 480g (including battery, varies according to different configurations) |
|---|---|
| Power | | | 6400mAh lithium battery is removable, Type C USB interface at the bottom, supports QC3.0 fast charging, intelligently identifies PC and charger, supports handle charging stand charging |
| Output power | 1~33dBm |
| Power consumption | Average power<8W |
Environmental
| Humidity | | 5% to 95% RH without condensation |
|---|---|
| Drop specifications | | 1.5 meters |
Other configuration
| size | 156(H)×79.5(W)×127.5(T) |
|---|---|
| Keyboard | | Volume +, - keys, power on/off key, 2 side scan keys, handle scan key, 1 custom function key |
| Audio | | · Built-in single speaker (1W), built-in dual microphones (with noise reduction function), 3.5mm stereo headset interface |
| Notification method | | Sound, vibrator, LED light indication |
| Waterproof and dustproof industrial grade | | IP65 |
| Image acquisition | | Front camera 5MP, rear camera 13MP, UTouch(C) rear camera 13MP |
| Security module (optional) | | Micro PSAM card*1 |
| Readable and writable tags | Comply with ISO-18000-6C/EPCC1G2 |
| Working frequency | 840-960MHz (can be customized according to national and regional regulations), the default is 902-928MHz |
| working method | Works in wide spectrum frequency hopping (FHSS) or fixed frequency transmission mode |
| writing distance | Writing distance 0-300cm (affected by label and environment) |
| Card writing speed | Average writing time per word (32bits) is 60ms |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Confirm sled or integrated antenna, trigger, battery, carry method and application SDK requirements.
