SEUIC (Dongji) / Handheld RFID readers

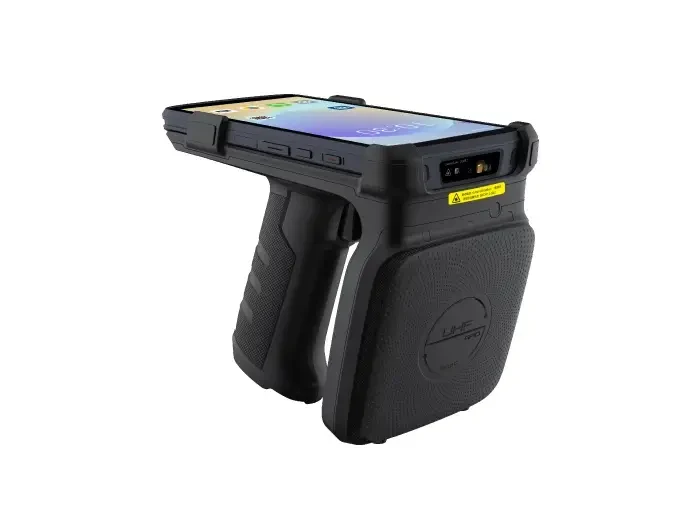

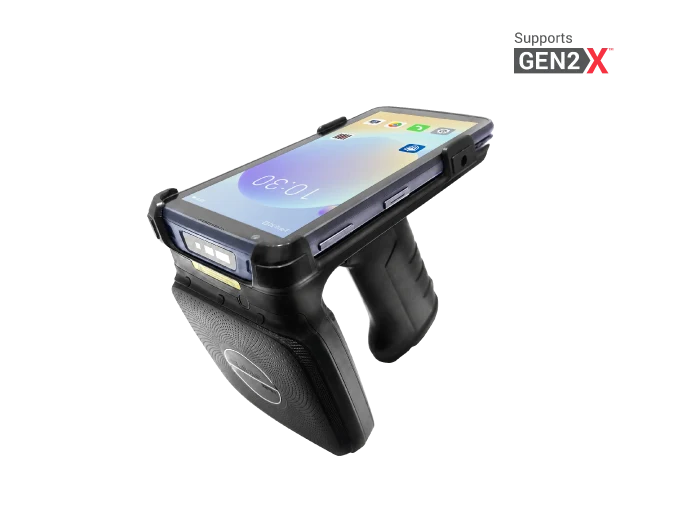

CRUISE2 5G Grip Tsled: Handheld RFID readers
CRUISE2 5G Grip Tsled is listed in the handheld rfid readers portfolio for mobile RFID inventory and item identification. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: mobile UHF RFID inventory and asset workflows
- Display
- 6-inch display, capacitive touch, supports glove touch/wet hand operation/double-click to wake up · Resolution 1440*720
- 2D Image Scan Engine | Image Resolution
- 1280*800 pixels
- Power |
- 8350mAh (host 5000mAH + handle 3350mAh replaceable), handle optional 6700mAh
- Drop specifications |
- 1.5 meters
- Interface/Communication |
- Interface/communication: Waterproof TYPE C USB interface; supports TYPE C headphones; supports USB 2.0 Highspeed; supports OTG; supports fast charging
- Weight (with standard battery) |
- 668g (including battery)
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where CRUISE2 5G Grip Tsled fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Cycle counts and stock checks
- Asset audits and tool tracking
- Returns, receiving and exception handling
Key capabilities
- A handheld RFID reader entry; region-specific frequency, antenna, read behavior and host integration require testing.
- Portfolio fit: mobile UHF RFID inventory and asset workflows.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Display | 6-inch display, capacitive touch, supports glove touch/wet hand operation/double-click to wake up · Resolution 1440*720 |
|---|---|
| CPU | | Octa-core, 2.4GHz |
| operating system | | Android 14 |
| User Storage Extension | | Micro SD Card, supports up to 256GB |
| Storage | | 4GB+64GB / 8GB+128GB |
| Operating temperature | | -20℃ to +55℃ |
| Storage temperature | | -40℃ to +70℃ (without battery) |
| Electrostatic discharge (ESD) | ±15kV air discharge, ±8kV direct discharge |
| 2D Image Scan Engine | Image Frame Rate | 60fps |
| RFID read/write (HF) | operating frequency | HF band 13.56MHz |
| GPS positioning system | GPS+GLONASS+Beidou+Galilieo, supports AGPS, L1 single frequency · Reserved: compatible design single Beidou |
Data capture
| Sensor | | Gravity sensor, light sensor, distance sensor, electronic compass (non-standard configuration), gyroscope (non-standard configuration) |
|---|---|
| 2D Image Scan Engine | Image Resolution | 1280*800 pixels |
| 2D image scanning engine | Field of view | Horizontal 42°, vertical 26.8° |
| Two-dimensional image scanning engine | LED supplementary light source | Color temperature: 2700K; bright and uniform warm color lighting source · Service life: in line with IESNA LM-80 standards |
| 2D Image Scan Engine | Laser Safety Level | Class II |
| 2D image scanning engine | scanning depth of field | Two-dimensional image scanning engine --- Resolution: 5mil |
| 2D Image Scan Engine | Supported Symbols | 1D: UPC/EAN, UPC/EAN, Code128, GS1-128, Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial2 of 5, Codabar, MSI, Code11, etc. · 2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, etc. |
| Front camera photo function | fixed focus |
| Front camera pixels | 5 million |
| Rear camera camera function | phase focus |
| Rear camera pixels | 13 million |
| Rear camera flash + fill light | support |
| RFID Read/Write (HF) | Read and write tags | Supports ISO15693, ISO14443A/B (without encryption protocol), ISO14443A tags with encryption protocol (Mifare one S50, S70 and compatible cards); supports NFC protocol |
| RFID read/write (HF) | read range | Reading distance 0-5.5cm (ISO15693), 0-4cm (ISO14443A), 0-1.5cm ID card |
Connectivity
| Interface/Communication | | Interface/communication: Waterproof TYPE C USB interface; supports TYPE C headphones; supports USB 2.0 Highspeed; supports OTG; supports fast charging |
|---|---|
| SIM interface | | Nano SIM card*2 (dual SIM card, dual standby, supports 5G) |
Power and physical
| Power | | 8350mAh (host 5000mAH + handle 3350mAh replaceable), handle optional 6700mAh |
|---|---|
| Weight (with standard battery) | | 668g (including battery) |
Environmental
| Humidity | | 5% to 95% RH non-condensation |
|---|---|
| Drop specifications | | 1.5 meters |
Other configuration
| size | 189(H) * 91(W) * 138(T)mm |
|---|---|
| Keyboard | | Volume +, - keys, power on/off key, 2 side scan keys, function keys |
| Audio | | Built-in single speaker (2W), dual silicon MIC design (with call noise reduction) |
| Notification method | | Sound, vibrator, LED light indication |
| Waterproof and dustproof industrial grade | | IP67 |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Confirm sled or integrated antenna, trigger, battery, carry method and application SDK requirements.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
Buy, validate or customize through RuggedLayer
Make CRUISE2 5G Grip Tsled part of a deployment plan.
Request a sample, quote, application validation or customization discussion directly with our team. The model is carried into the project intake so the conversation starts with useful context.
