SEUIC (Dongji) / Barcode scanners

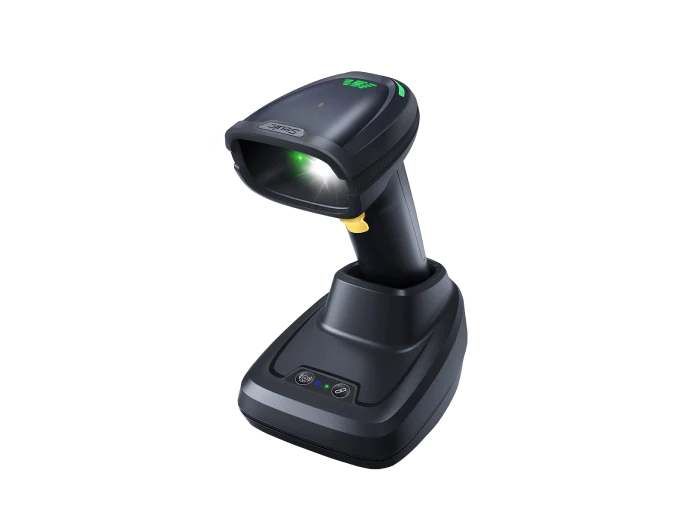

HS220C: Barcode scanners
HS220C is listed in the barcode scanners portfolio for reliable barcode capture at a fixed or operator-held station. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: countertop, workstation and industrial barcode capture
- Readable barcode types
- 1D: Code39, Code128, GS1-128, Code93, Codabar, UPC/EAN, I2of5, etc. · 2D: PDF417, MicroPDF417, Aztec, Data Matrix, QR code, Micro QR, etc.
- Battery
- Typical capacity: 2500mah; non-removable battery
- Protection level
- IP54
- Communication interface
- RS232, USB keyboard, USB COM
- weight
- 200g±3g
- image sensor
- 1280x1024 CMOS sensor
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where HS220C fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Point-of-sale and service counters
- Production and quality stations
- Parcel, shipping and workstation capture
Key capabilities
- A scanner entry for 1D, 2D or application-specific capture; symbology, distance, lighting and host interface require testing.
- Portfolio fit: countertop, workstation and industrial barcode capture.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Frame rate | Up to 60 frames/second |
|---|---|
| storage temperature | -20℃ to 70℃ |
| Storage capacity in batch mode | 20,000 13-digit regular product codes |
| Electrostatic discharge (ESD) | ±15kV air discharge, ±8kV contact discharge |
| storage temperature | -20℃ to 70℃ |
Data capture
| image sensor | 1280x1024 CMOS sensor |
|---|---|
| Readable barcode types | 1D: Code39, Code128, GS1-128, Code93, Codabar, UPC/EAN, I2of5, etc. · 2D: PDF417, MicroPDF417, Aztec, Data Matrix, QR code, Micro QR, etc. |
| Reading direction | Elevation angle ±60°; oblique angle ±55° |
| Recognition accuracy | One-dimensional code: 3mil, two-dimensional code: 5mil |
| Reading depth of field (typical) | 3mil Code128: 4cm~11cm (HD high-density version) 8cm~12cm (SR standard version) · 5mil Code128: 3cm~14cm (HD high-density version) 3cm~28cm (SR standard version) · 10mil Code128: 4cm~15cm (HD high-density version) 1cm~44cm (SR standard version) · ENA 13: 2cm~18cm (HD high-density version) 1cm~43cm (SR standard version) · 5mil DM/QR: 4cm~8cm (HD high-density version) · 6.6mil DM/QR: 3cm~10cm (HD high-density version) · 10mil DM/QR: 1cm~14cm (HD high-density version) 3.5cm~25cm (SR standard version) · 20mil DM/QR: 1cm~21cm (HD high-density version) 2cm~42cm (SR standard version) |
| Full power status scan times | Supports 70,000 consecutive scans at a frequency of 2 scans per second |
Connectivity
| Communication interface | RS232, USB keyboard, USB COM |
|---|
Power and physical
| weight | 200g±3g |
|---|---|
| Battery | Typical capacity: 2500mah; non-removable battery |
| Charging rated power | Only supports USB charging power: 2.5W |
| weight | 167.75g±3g |
Environmental
| Protection level | IP54 |
|---|---|
| working temperature | 0℃ to 50℃ |
| humidity | 5% to 95% RH without condensation |
| drop rating | Can withstand 30 1.5m air drops |
| rolling specifications | Can withstand 500 0.5m tumble impacts |
| working temperature | 0℃ to 50℃ |
| humidity | 5% to 95% RH without condensation |
Other configuration
| Lens classification | High-density HD lens, standard SR lens |
|---|---|
| lighting source | White LED |
| sight | Green dot LED |
| field of view | FOV（D）：50°； FOV（H）：40°； FOV（V）：31° |
| Transmission method | 2.4G |
| Transmission distance | Transmission distance in the open air: 100 meters |
| Vibration motor | support |
| size | 166.2(H)× 105.5(W)× 68.5(T) mm |
| light level | 0 to 100,000Lux |
| Shell material | High strength engineering plastics |
| Charging time | Charging using USB cable: 6~8 hours (no external DC 5V power port) |
| Certification | CE, FCC, RoHS, UN38.3 Air Transport Report |
| size | 90(H)× 115(W)× 75(T) mm |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
