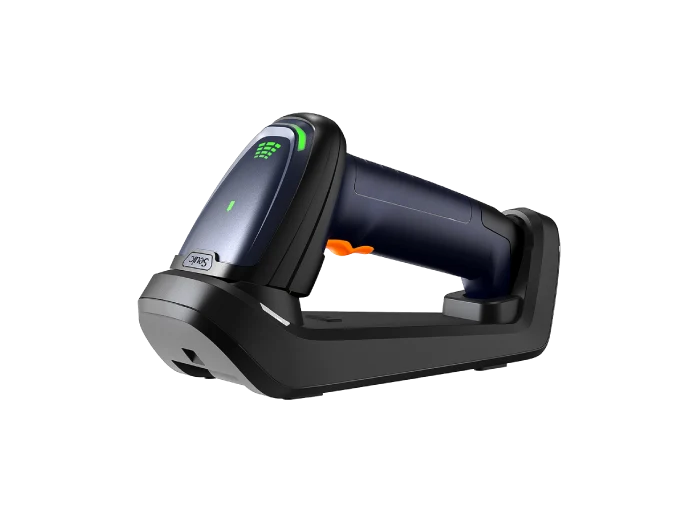

HS525 Series: Barcode scanners
HS525 Series is listed in the barcode scanners portfolio for reliable barcode capture at a fixed or operator-held station. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: countertop, workstation and industrial barcode capture
- Readable barcode types
- 1D: Code39, Code128, Code93, Codabar, UPC/EAN, 12of5, GS1128, etc. · 2D: PDF417, MicroPDF417, Aztec, Data Matrix, QR code, Micro QR, etc. · OCR (can support customization)
- Battery
- Rated capacity: 3150mAh; Typical capacity: 3500mAh; Removable battery
- Protection level
- IP54
- Wireless communication distance
- Transmission distance in the open air: 100 meters
- weight
- 226g±3g
- image sensor
- CMOS sensor with global shutter 1080x1280
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where HS525 Series fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Point-of-sale and service counters
- Production and quality stations
- Parcel, shipping and workstation capture
Key capabilities
- A scanner entry for 1D, 2D or application-specific capture; symbology, distance, lighting and host interface require testing.
- Portfolio fit: countertop, workstation and industrial barcode capture.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Frame rate | Up to 60 frames/second |
|---|---|
| storage temperature | -20℃ to 70℃ |
| Storage capacity in batch mode | 5000 barcodes |
| Electrostatic discharge (ESD) | ±15kV air discharge, ±8kV contact discharge |
| storage temperature | -20℃ to 70℃ |
Data capture
| image sensor | CMOS sensor with global shutter 1080x1280 |
|---|---|
| Readable barcode types | 1D: Code39, Code128, Code93, Codabar, UPC/EAN, 12of5, GS1128, etc. · 2D: PDF417, MicroPDF417, Aztec, Data Matrix, QR code, Micro QR, etc. · OCR (can support customization) |
| Reading direction | Elevation angle ±60°; oblique angle ±55° |
| Recognition accuracy | 1D code: 2.5mil 2D code: 4mil (DP model) · 1D code: 2mil 2D code: 3mil (HDP model) |
| Full power status scan times | Supports 100,000 consecutive scans at a frequency of 2 scans per second |
Connectivity
| Wireless communication distance | Transmission distance in the open air: 100 meters |
|---|---|
| Communication interface | RS232, USB keyboard, USB COM |
Power and physical
| weight | 226g±3g |
|---|---|
| Battery | Rated capacity: 3150mAh; Typical capacity: 3500mAh; Removable battery |
| Charging rated power | USB charging power: 2.5W |
| weight | 179g±3g |
Environmental
| working temperature | 0℃ to 50℃ |
|---|---|
| humidity | 5% to 95% RH without condensation |
| Protection level | IP54 |
| drop rating | Can withstand 50 drops from 1.8m in the air |
| rolling specifications | Can withstand 2,000 0.5m tumble impacts |
| working temperature | 0℃ to 50℃ |
| humidity | 5% to 95% RH without condensation |
| Protection level | IP51 |
| drop rating | Can withstand 20 1.2m air drops |
Other configuration
| Lens classification | DPM lens (horizontal 40.2°, vertical 46.9°) |
|---|---|
| lighting source | Intelligent adjustable diffuse light source white red blue |
| sight | Laser cross with aiming frame |
| Vibration motor | support |
| size | 166.2(H)×105.5(W)× 68.5(T) mm |
| light level | 0 to 100,000Lux |
| Shell material | High strength engineering plastics |
| Charging time | Charging using USB cable: 6~8 hours |
| Certification | CE, FCC, RoHS, UN38.3 Air Transport Report |
| size | 219.3(H)×88.4(W)×62.3(T) mm |
| Shell material | High strength engineering plastics |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Validate stands, cables, mounting, host protocol, scan angle and difficult-code performance in the target environment.
