SEUIC (Dongji) / Keypad mobile terminals

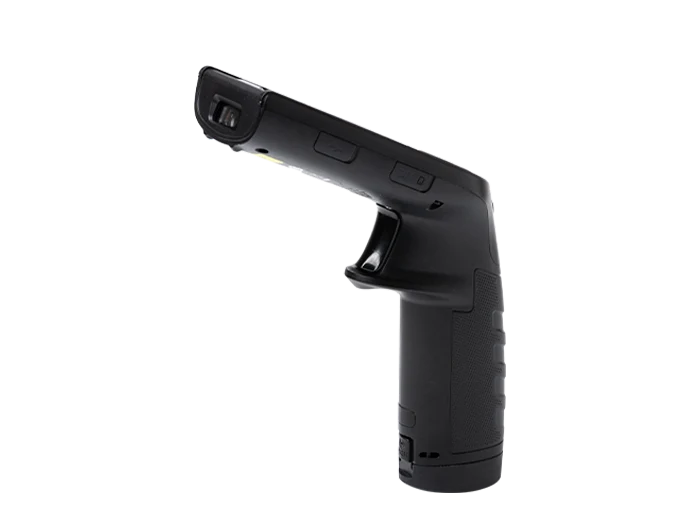

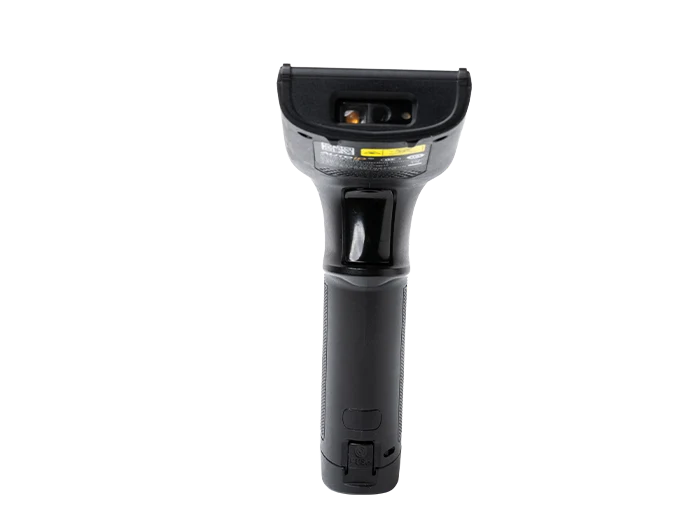

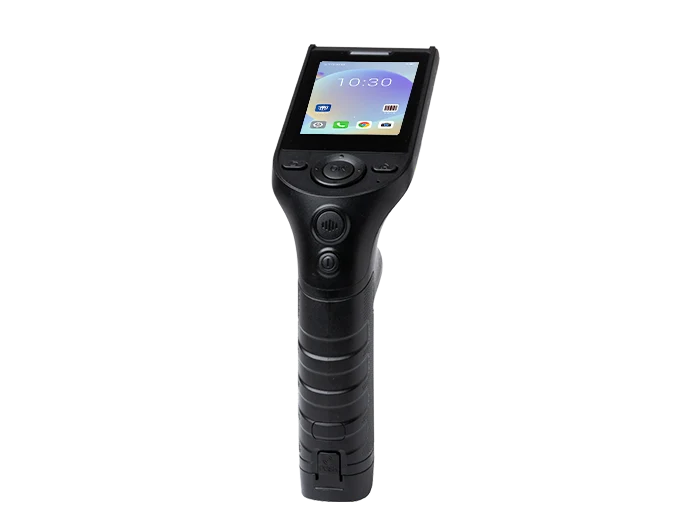

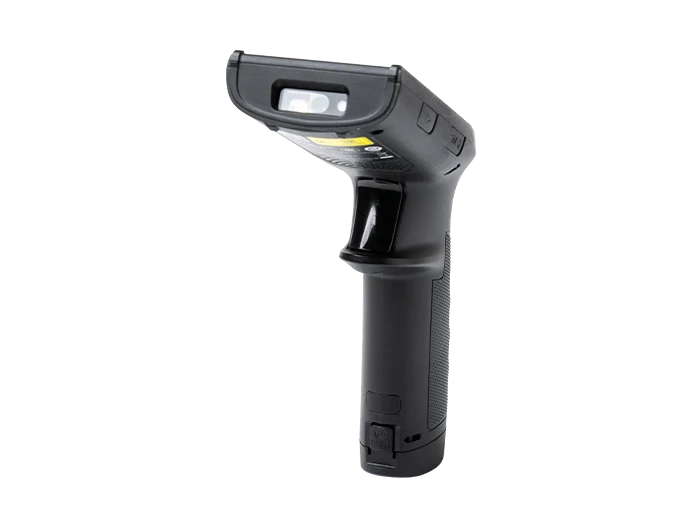

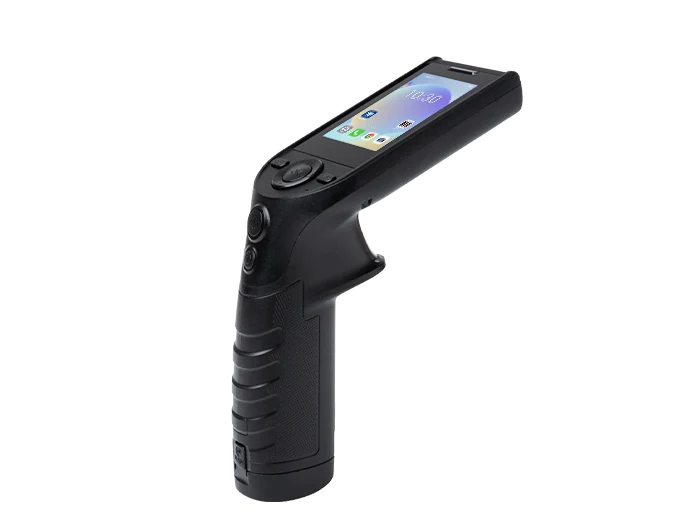

Lim: Keypad mobile terminals
Lim is listed in the keypad mobile terminals portfolio for fast operator-led data capture with physical input. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: high-throughput, glove-friendly and scan-intensive operations
- CPU
- 4-core 1.3GHz high-performance processor
- Display
- 2.4 inches, resolution 320*240 (capacitive touch screen, single touch)
- 2D image scanning engine (optional)
- Please refer to product specifications for details
- Power |
- 3.7V 3180mAh lithium battery (rated capacity), removable, Micro-USB
- Drop specifications |
- 1.5m drop complete machine (marble)
- Interface/communication
- Support USB2.0, support OTG
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where Lim fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Distribution and sorting
- Manufacturing and line-side work
- Cold-chain or glove-use workflows
Key capabilities
- A keypad mobile terminal entry for repetitive scan work; key layout, scan engine, display and battery variant require review.
- Portfolio fit: high-throughput, glove-friendly and scan-intensive operations.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Display | 2.4 inches, resolution 320*240 (capacitive touch screen, single touch) |
|---|---|
| CPU | 4-core 1.3GHz high-performance processor |
| operating system | Android 8.1 Go |
| Operating temperature | | -20℃ to +50℃ |
| Storage temperature | | -40℃ to +60℃ (including battery), -40℃ to +70℃ (without battery) |
| Electrostatic discharge (ESD) | ±15kV air discharge, ±8kV direct discharge |
Data capture
| sensor | Three-axis gyroscope |
|---|---|
| 2D image scanning engine (optional) | Please refer to product specifications for details |
Connectivity
| Interface/communication | Support USB2.0, support OTG |
|---|---|
| WIFI | IEEE 802.11a/b/g/n (2.4G/5G dual-band WIFI), please refer to the product specification for details |
Power and physical
| weight | 220g |
|---|---|
| Power | | 3.7V 3180mAh lithium battery (rated capacity), removable, Micro-USB |
Environmental
| humidity | 5% to 95% RH without condensation |
|---|---|
| Drop specifications | | 1.5m drop complete machine (marble) |
Other configuration
| size | 159.02(H)×113.81(W)×54(T) mm |
|---|---|
| keyboard | 10 keys: return, menu, up, down, left, right, confirm, scan code, power key, voice recognition |
| Audio | Built-in speaker, built-in microphone |
| Notification method | | LED prompt/audio prompt/vibration prompt (built-in motor) |
| store | 1G+8GB/2GB+16GB (optional) |
| Waterproof and dustproof industrial grade | IP54 |
| Impact resistance | 1000 rounds of 0.5 meter rolling (equivalent to 2000 impacts) |
| WWAN | | Please refer to product specifications for details |
| Kind tips | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Scope pistol grip, cold-environment protection, batteries, cradles and operator carry method for the shift.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
Buy, validate or customize through RuggedLayer
Make Lim part of a deployment plan.
Request a sample, quote, application validation or customization discussion directly with our team. The model is carried into the project intake so the conversation starts with useful context.
