SEUIC (Dongji) / Vision cameras

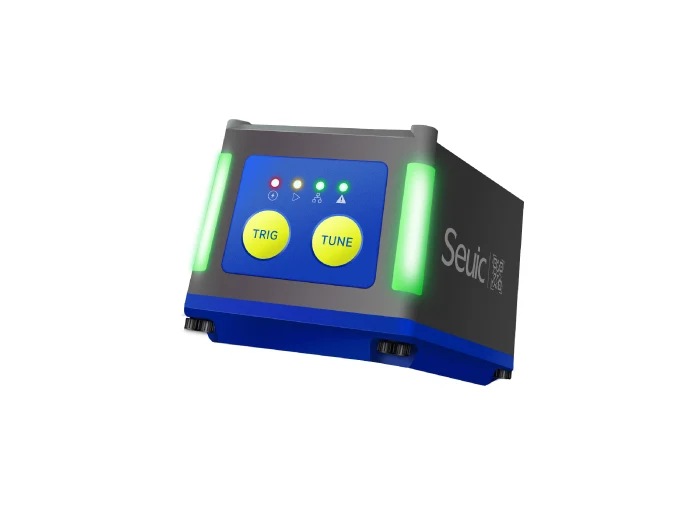

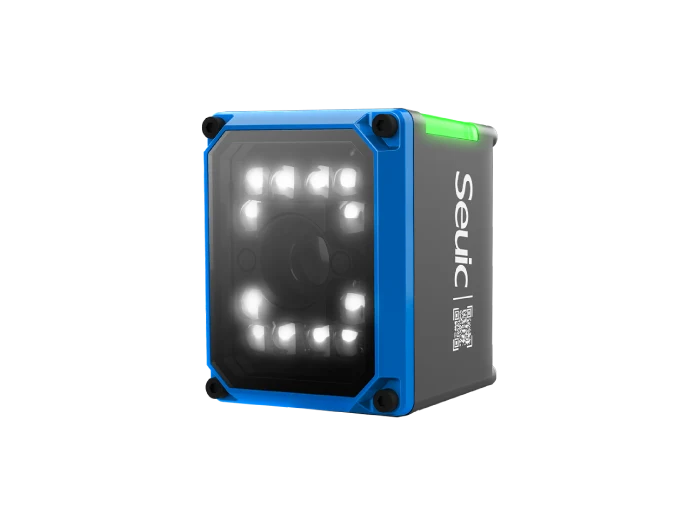

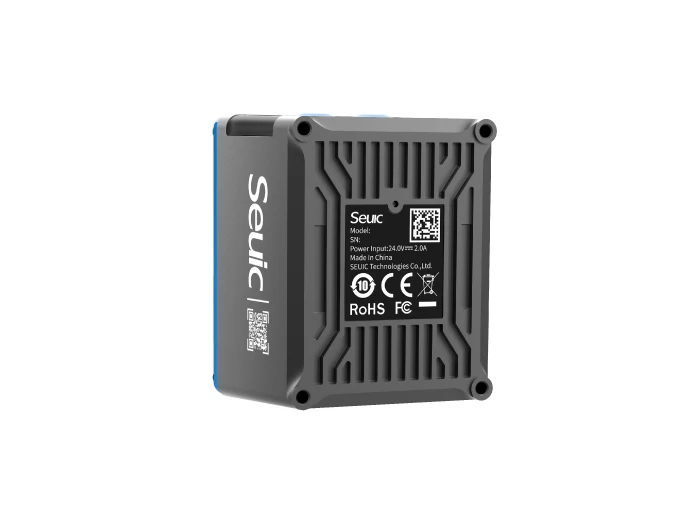

SEV450: Vision cameras
SEV450 is listed in the vision cameras portfolio for camera-based industrial inspection and identification. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: industrial inspection, identification and machine-vision workflows
- Enclosure protection level |
- IP67
- Serial communication transmission speed |
- 115200/57600/38400/19200/9600bps
- Sensor |
- CMOS image sensor with global shutter
- image pixels |
- 2 million, 1600x1200
- Lighting source |
- White or red LED (blue LED can be customized for special models)
- sights |
- Laser Dual Dot Positioning Sight Class II
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where SEV450 fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Quality inspection
- Presence and position checks
- Production traceability and automation
Key capabilities
- A vision-camera entry; optics, lighting, processing, interfaces and application logic require an engineering review.
- Portfolio fit: industrial inspection, identification and machine-vision workflows.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Vision Tool Positioning | | position correction |
|---|---|
| Program Capabilities | | Supports plan import/export and can store up to 32 plans |
| Enclosure protection level | | IP67 |
| Operating temperature | | 0°~50°C |
| Storage temperature | | -20°C~70°C |
| Storage environment humidity | | 5% to 95% RH non-condensation state |
Data capture
| Sensor | | CMOS image sensor with global shutter |
|---|
Connectivity
| Serial communication transmission speed | | 115200/57600/38400/19200/9600bps |
|---|---|
| Protocols supported by serial communication | | RS232/RS485 |
| USB communication standard | | Compliant with USB2.0FullSpeed |
Power and physical
| Control the number of input connection ports | | 2 |
|---|---|
| Control the number of output connection ports | | 3 |
| Protocols supported by Ethernet | | TCP/UDP |
Environmental
| relative humidity | | 5% to 95% RH non-condensation state |
|---|---|
| Work environment | | No dust or corrosive gases |
Other configuration
| image pixels | | 2 million, 1600x1200 |
|---|---|
| Lighting source | | White or red LED (blue LED can be customized for special models) |
| sights | | Laser Dual Dot Positioning Sight Class II |
| Detection distance | | Adjustable from 50mm to 1000mm (SEV450 standard type), adjustable from 50mm to 500mm (SEV450 wide field of view type) |
| Visual Tool Count | | spots, edges, patterns |
| Presence of visual tools | | Circles, lines, spots, edges, patterns |
| Vision Tool Measurement | | Line angle, diameter, average brightness, contrast, width, dot line, spot area, straight line angle, pitch |
| Visual Tool Identification | | 1D, 2D barcode recognition |
| Visual Tool Learning | | Online classification, online detection, online OCR |
| Control input input type | | Bidirectional voltage input |
| Control input maximum rating | | 30V |
| Control input minimum ON voltage | | ＜4V |
| Control input maximum OFF current | | 0.001A |
| Control Output Output Type | | 3-way optocoupler output |
| Control output maximum rating | | 30V |
| Control output maximum load current | | 1 output: 50mA or less Total 3 outputs: 100mA or less |
| Leakage current when control output is OFF | | 0.1mA or less |
| Residual voltage when control output is ON | | 1V or less |
| Ambient brightness | | 0~10000lux |
| Supply voltage | | 10~30VDC |
| Current consumption | | 0.5~1.5A |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
