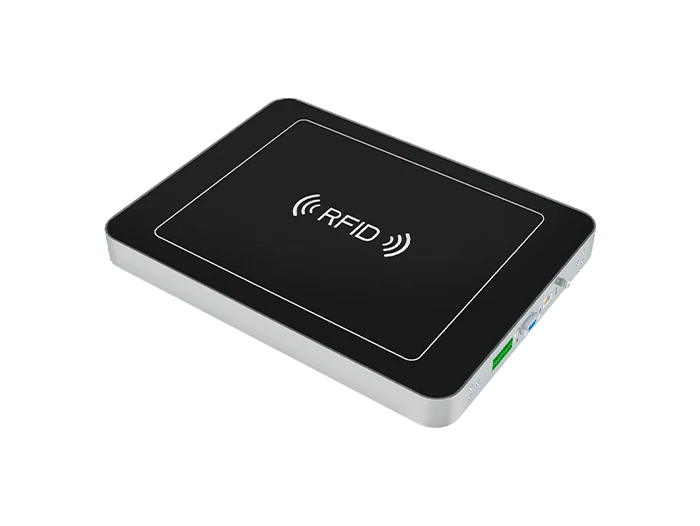

U400 RFID: Fixed RFID readers
U400 RFID is listed in the fixed rfid readers portfolio for fixed-point RFID visibility. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: portal, shelf, workstation and fixed-point RFID deployments
- Read and write - output power
- 0~33dBm adjustable, ±1dBm
- Hardware Parameters-Communication |
- RS232，HID，TCP，HTTP，HTTPS，MQTT
- Appearance and Environment-Weight |
- Net weight is about 2.5kg
- model
- U400
- Read and write - operating frequency
- 860~960Mhz · Can be adjusted according to the requirements of different countries or regions: · National standard 920~925MHz (default)/American standard 902~928MHz/European standard 865~868MHz
- Read-Write-Tag Protocol
- EPC Global C1 Gen 2、ISO 18000-6C
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where U400 RFID fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Dock-door and portal reads
- Shelf or cabinet visibility
- Workstation and conveyor identification
Key capabilities
- A fixed RFID reader entry; antenna layout, reader density, cabling and RF environment must be validated on site.
- Portfolio fit: portal, shelf, workstation and fixed-point RFID deployments.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Read and write - operating frequency | 860~960Mhz · Can be adjusted according to the requirements of different countries or regions: · National standard 920~925MHz (default)/American standard 902~928MHz/European standard 865~868MHz |
|---|---|
| Hardware Parameters-Communication | | RS232，HID，TCP，HTTP，HTTPS，MQTT |
| Hardware parameters-external interface | RJ45*1, RS232*1, USB*1, GPIO 4 in and 4 out |
| Hardware parameters-keys | | IP reset button |
| Hardware Parameters-Status Indication | | Power indicator light, connection status indicator light, buzzer |
| Appearance and Environment-Operating Temperature | | -20℃～60℃ |
| Appearance and environment-storage temperature | | -40℃～85℃ |
| Appearance and Environment-Operating Humidity | | 5%～95%RH no condensation |
Power and physical
| Read and write - output power | 0~33dBm adjustable, ±1dBm |
|---|---|
| Appearance and Environment-Power Input | | DC 12V/2A |
| Appearance and Environment-Power | | 24W |
| Appearance and Environment-Weight | | Net weight is about 2.5kg |
Environmental
| Appearance and environment - overall machine size | | 400mm long x 300mm wide x 35mm high |
|---|
Other configuration
| model | U400 |
|---|---|
| Read-Write-Tag Protocol | EPC Global C1 Gen 2、ISO 18000-6C |
| Read and write - frequency hopping mode | Works in wide spectrum frequency hopping (FHSS) or fixed frequency transmission mode |
| Warm reminder | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Plan antennas, brackets, cables, power, network, enclosure and commissioning support for the installation.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
Buy, validate or customize through RuggedLayer
Make U400 RFID part of a deployment plan.
Request a sample, quote, application validation or customization discussion directly with our team. The model is carried into the project intake so the conversation starts with useful context.
