UROVO / RFID readers and infrastructure
D81R Series: RFID readers and infrastructure
UROVO provides professional POS Android terminals & other mobile computers device solutions equipped with efficient custom enterprise enabled software.
Best fit: item-level inventory, asset tracking and RFID workflows
- CPU
- 500 MHZ, · 32 bits, Cotext-M7
- Memory
- 8MB SDRAM · 16MB FLASH
- RFID Specifications
- -RFID standard protocol: EPC Class1 Gen2/ISO18000-6C · -RFID job monitoring tools track RFID performance · -Support reading the TID, EPC, TID+EPC data of the labels · -Support RFID password Lock/Unlock configuration
- Communication
- USB 2.0 480Mbps · Bluetooth · 2.4GHz/5GHz dual-band Wi-Fi(optional)
- Dimensions
- - Size：280mm x 190mm x 198.3mm · - Net Weight: 2.7kg
- Environmental
- - Operating temp.: +5 ~ +40°C, · 25~ 85%(non-condensing) · - Storage temp.: -40 ~ +60°C, · 10~90%(non-condensing)
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where D81R Series fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Inventory counting and reconciliation
- Asset tracking and item identification
- Portal, shelf or workstation RFID deployments
Key capabilities
- A reader or RFID platform for item identification; antenna, frequency, read range and deployment geometry require validation.
- Portfolio fit: item-level inventory, asset tracking and RFID workflows.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| CPU | 500 MHZ, · 32 bits, Cotext-M7 |
|---|---|
| Memory | 8MB SDRAM · 16MB FLASH |
Data capture
| RFID Specifications | -RFID standard protocol: EPC Class1 Gen2/ISO18000-6C · -RFID job monitoring tools track RFID performance · -Support reading the TID, EPC, TID+EPC data of the labels · -Support RFID password Lock/Unlock configuration |
|---|
Connectivity
| Communication | USB 2.0 480Mbps · Bluetooth · 2.4GHz/5GHz dual-band Wi-Fi(optional) |
|---|
Power and physical
| Dimensions | - Size：280mm x 190mm x 198.3mm · - Net Weight: 2.7kg |
|---|
Environmental
| Environmental | - Operating temp.: +5 ~ +40°C, · 25~ 85%(non-condensing) · - Storage temp.: -40 ~ +60°C, · 10~90%(non-condensing) |
|---|
Other configuration

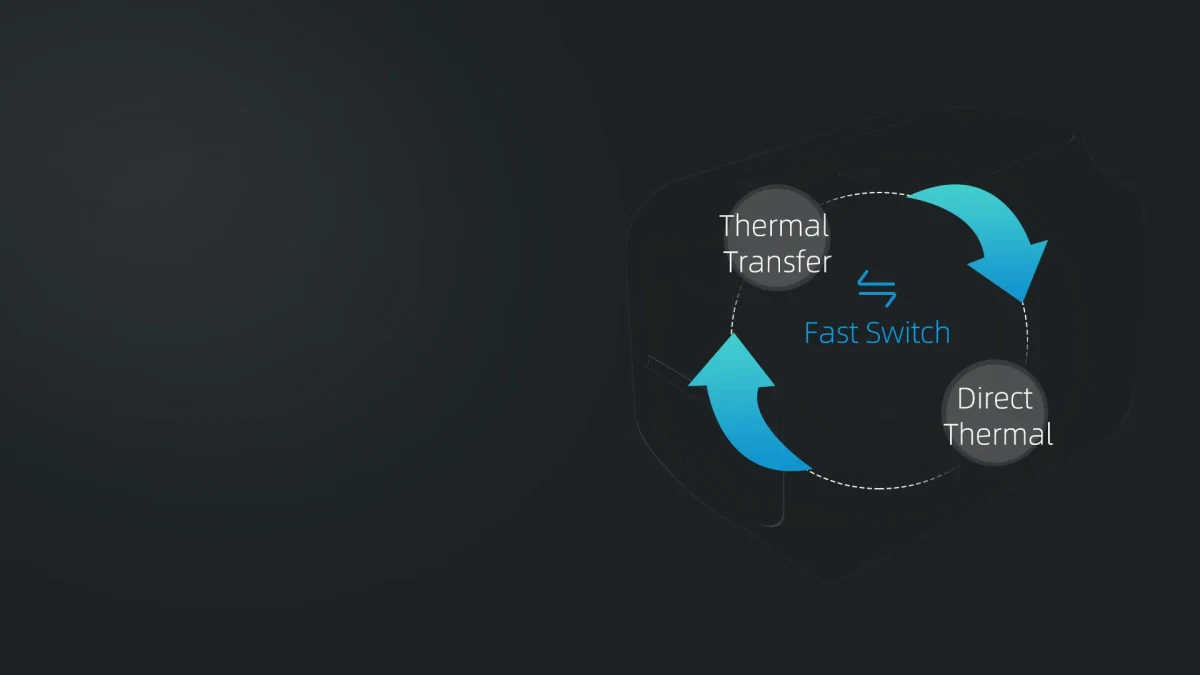

| Printing Specifications | - Print Methods: Direct Thermal/Thermal Transfer · - Emulation: TSPL, ZPL, ZPL II, · - Resolution:203DPI(D812R), 300DPI(D813R) · - Maximum Print Speed: 4 inch/s(print and encode) · - Maximum Print Width: 104mm(D812R), 108.4mm(D813R) · - Maximum Print Length:1000mm |
|---|---|

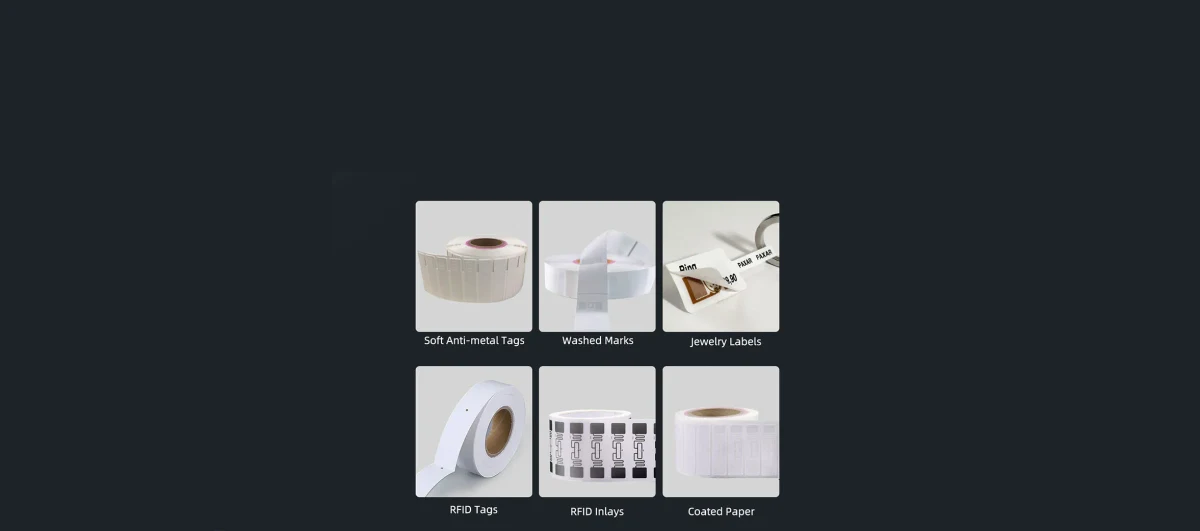

| Media Type | RFID Tags · Flexible Anti-Metal Labels · Jewelry Adhesive Labels · Copperplate Paper Labels |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Confirm antenna, mounting, trigger, cable, charging and reader-management requirements for the installation.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
