DT50D: RFID readers and infrastructure

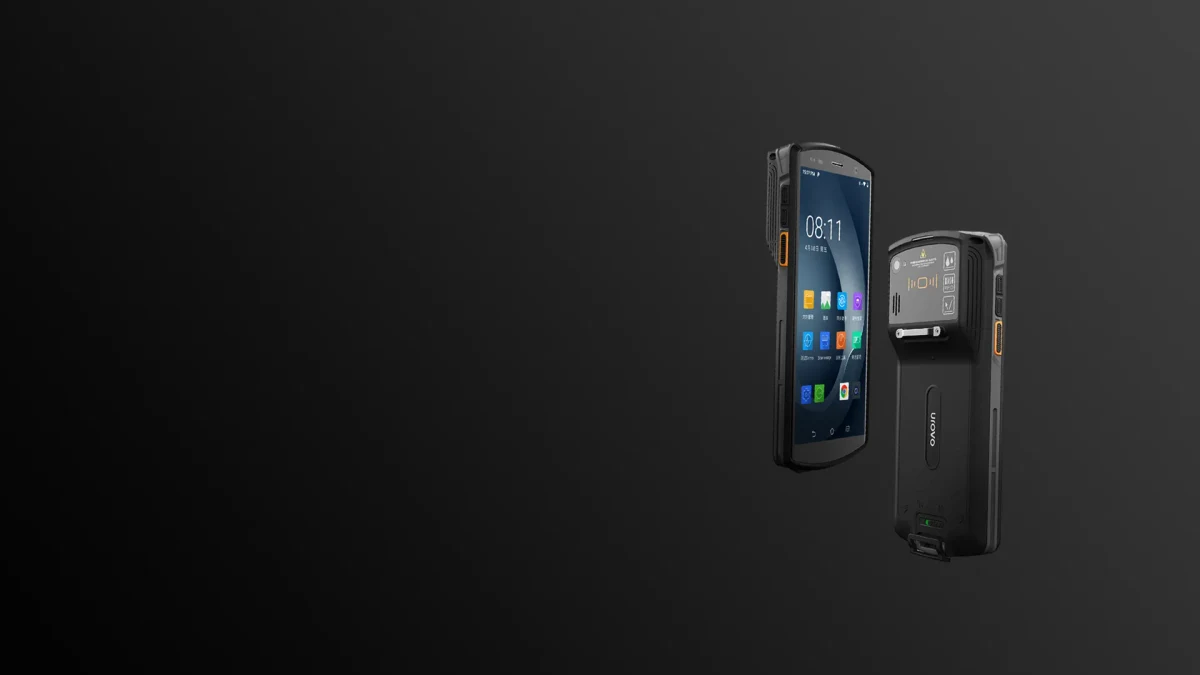

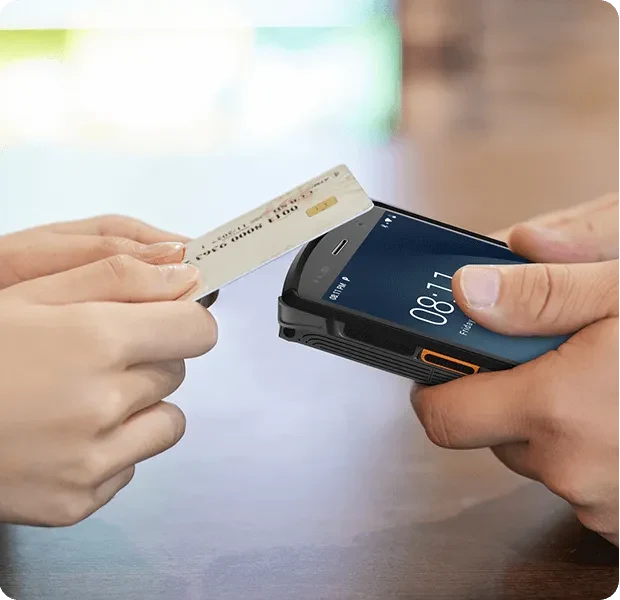

UROVO DT50D mobile RFID reader can read RFID tags & scan 1D/2D codes. DT50D handheld UHF RFID reader supports NFC and is suitable for various scenarios.
Best fit: item-level inventory, asset tracking and RFID workflows
- CPU
- Octa-core 2.45GHz
- Memory
- RAM: 3GB ROM: 32GB · RAM：4GB ROM：64GB (optional) · Micro-SD card, Up to 256 GB
- Display
- 5.7 inch display, · 720*1440
- Scanning
- Professional scan engine； · Support international · standard 1D/2D barcode； · Support barcode displayed · on screen and colored barcode；
- Power
- Capacity：3.85V 5000mAh
- Protection
- IP67 · 1.5m drop resistance
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where DT50D fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.

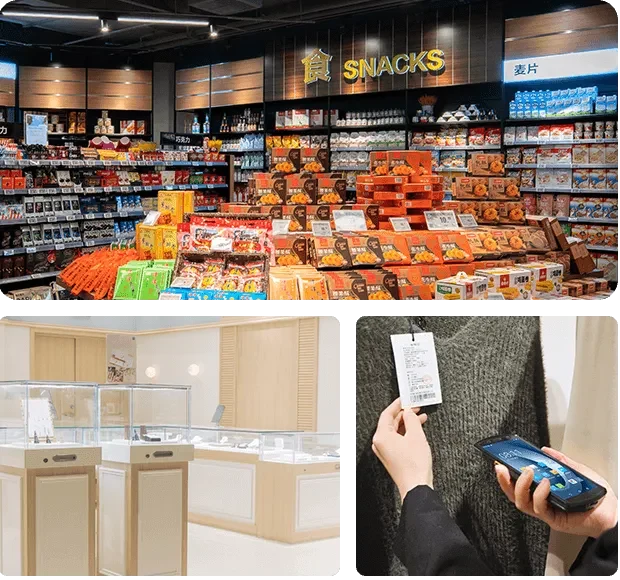

Best for
- Inventory counting and reconciliation
- Asset tracking and item identification
- Portal, shelf or workstation RFID deployments
Key capabilities
- A reader or RFID platform for item identification; antenna, frequency, read range and deployment geometry require validation.
- Portfolio fit: item-level inventory, asset tracking and RFID workflows.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| CPU | Octa-core 2.45GHz |
|---|---|
| OS | Android |
| Memory | RAM: 3GB ROM: 32GB · RAM：4GB ROM：64GB (optional) · Micro-SD card, Up to 256 GB |

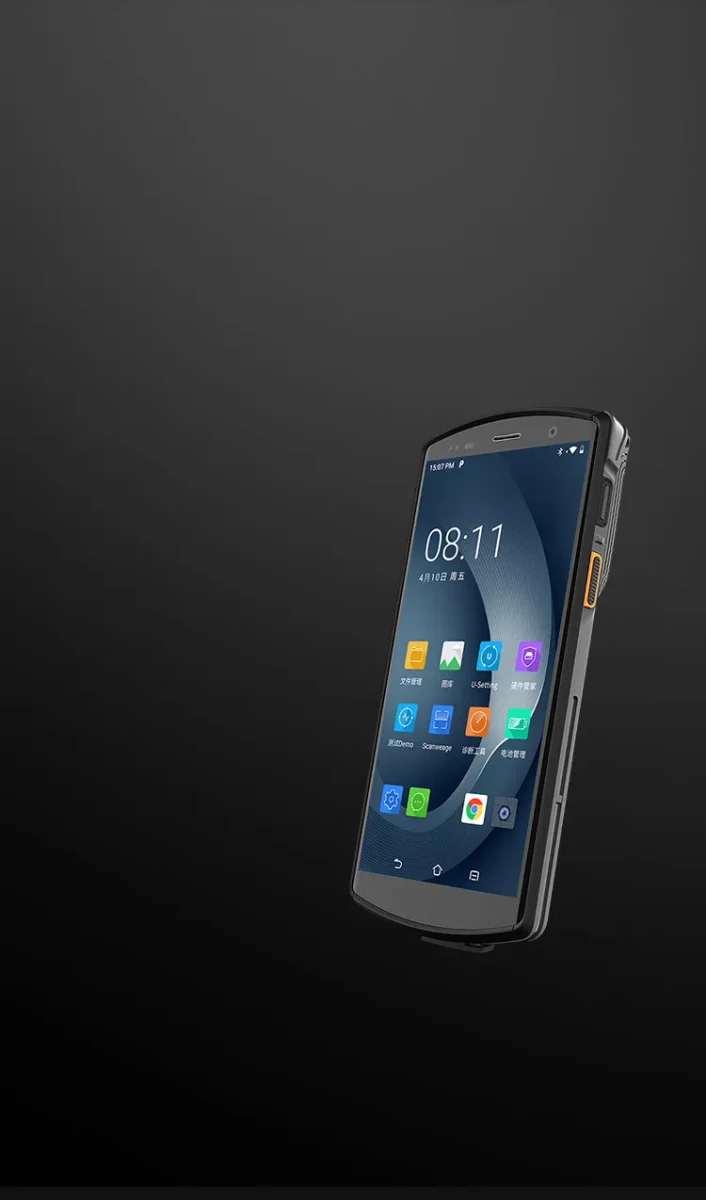

| Display | 5.7 inch display, · 720*1440 |

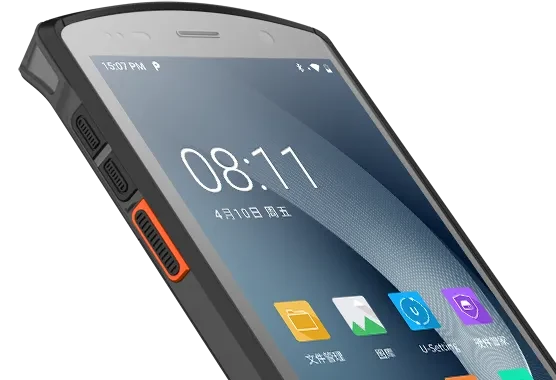

| Touchpanel | Ultra sensitive capacitive touch panel · Support multi-touch · Works with gloves and wet fingers |
Data capture
| Scanning | Professional scan engine； · Support international · standard 1D/2D barcode； · Support barcode displayed · on screen and colored barcode； |
|---|---|

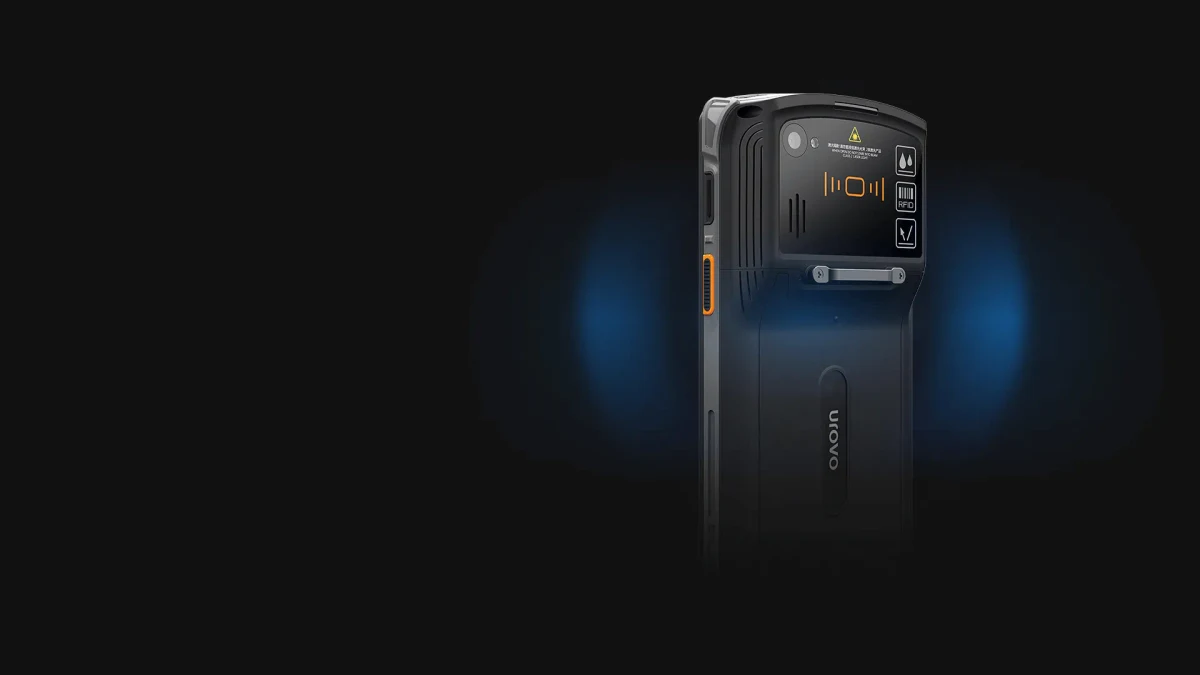

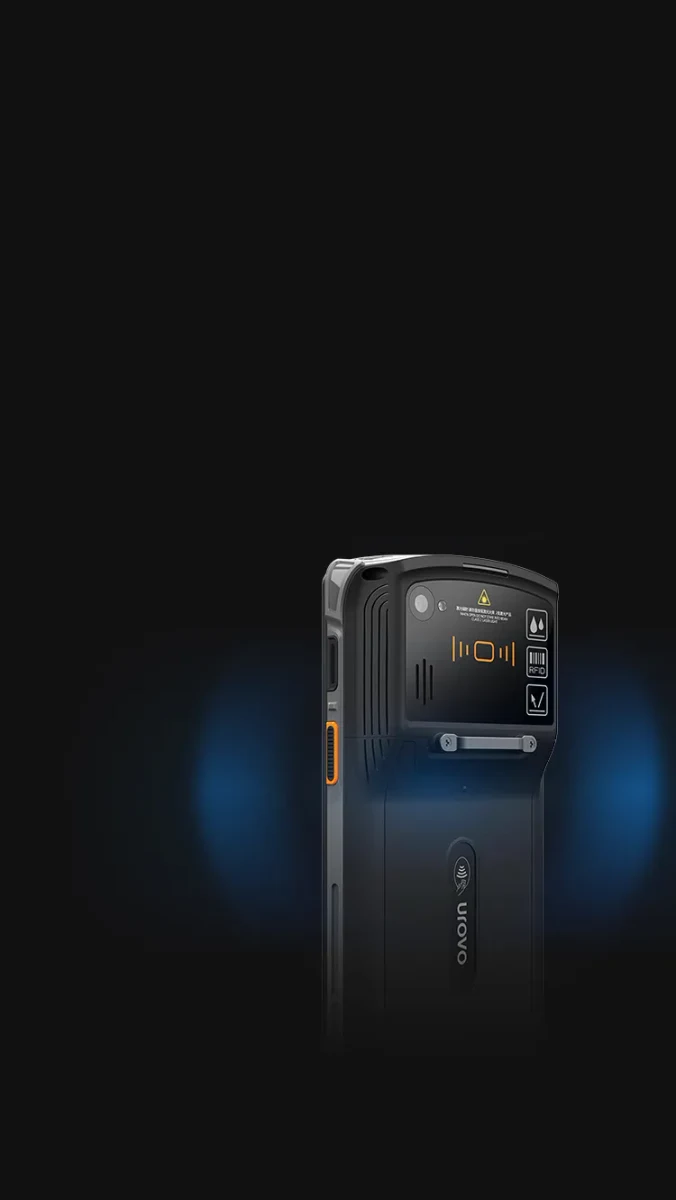

| RFID(UHF) | RFID tags reading, · up to 1.5m/3m |
| Camera | Front 5MP · Rear 13MP with flash |
Connectivity
| Bluetooth | BT+BR/EDR+BLE |
|---|---|
| Wi-Fi | 2.4G/5G，IEEE 802.11a/b/ · g/n/ac/d/e/h/i/k/r/v/w |
| GPS | GPS · A-GPS · BeiDou · GLONASS · Galileo |
Power and physical
| Dimensions | 162.6*76*13.6mm |
|---|---|
| Weight | 307g |
| Power | Capacity：3.85V 5000mAh |
| Buttons | PWR button · Vol+/- button · scan button*2 · custom button |
Environmental

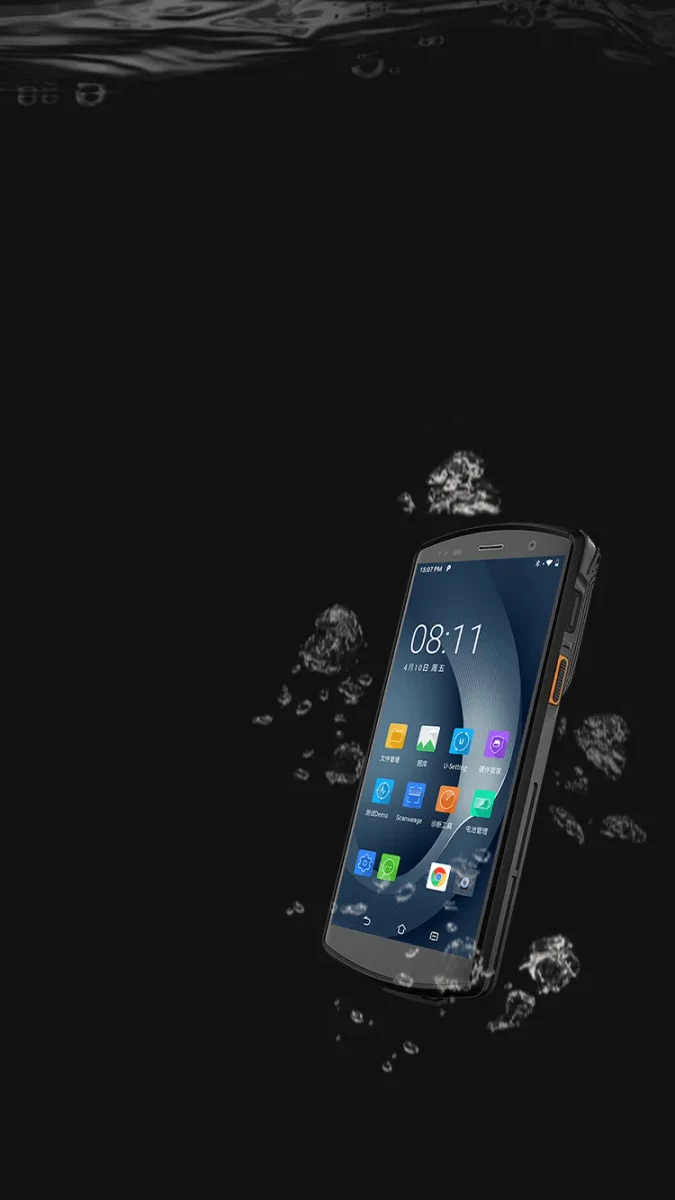

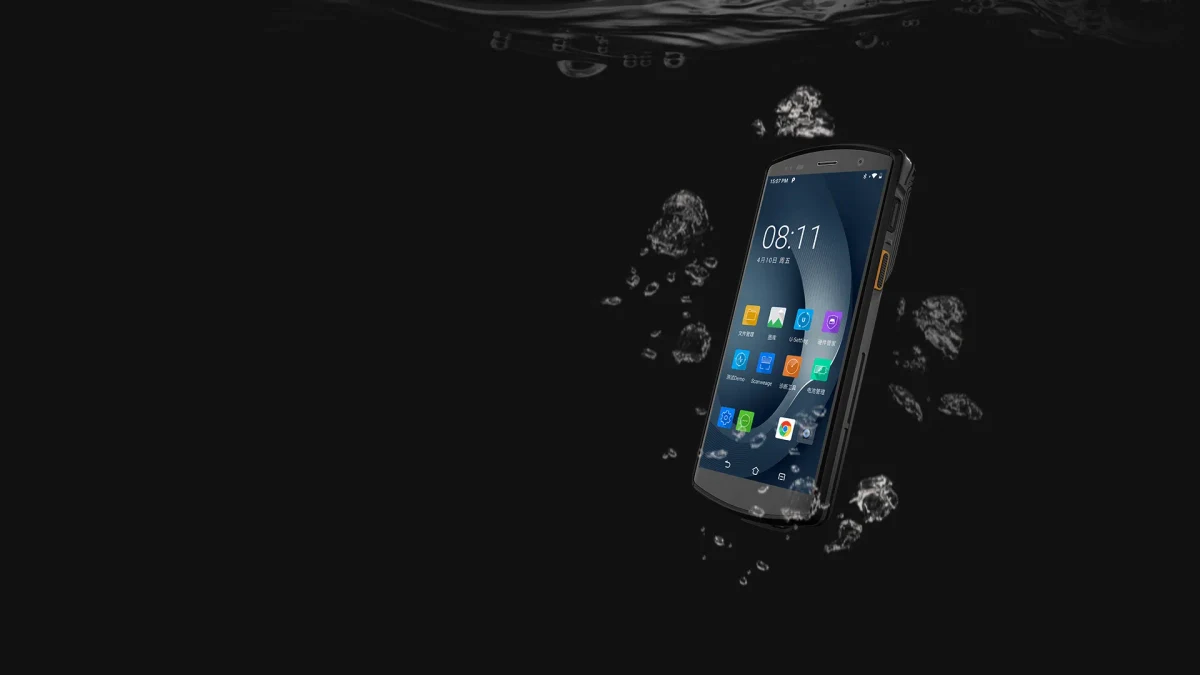

| Protection | IP67 · 1.5m drop resistance |
|---|---|
| Environmental | Operating Temp.：-20 ～ +60℃ · Storage Temp.：-40 ～ +70℃ · Humidity ：5%RH～95%RH ((No condensation) · ESD ：+/-15kv Air; +/-8kv contact |
Other configuration
| Audio | Dual-Microphone · (noise cancellation), · Speaker (1.5W), · Receiver |
|---|---|
| WWAN | 4G，3G，2G |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Confirm antenna, mounting, trigger, cable, charging and reader-management requirements for the installation.
