UROVO / Payment terminals
i9200: Payment terminals
UROVO provides professional POS Android terminals & other mobile computers device solutions equipped with efficient custom enterprise enabled software.
Best fit: retail payment, assisted checkout and unattended transaction workflows
- Processor
- Quad-core A53 2.0GHz · Octa-core A53 2.0GHz optional
- Memory
- RAM: 2GB ROM: 16GB · RAM: 3GB ROM: 32GB (optional) · Micro SD / TFx1, Up to 128 GB
- Display
- 5.5" display · (720X1440)
- Scanning
- Camera decoding, · supporting barcode and · payment QR code; · Optional scan engine
- Battery
- Removable li-polymer battery, · 3.85V / 5000mAh
- Dimensions
- L x W x H (mm): 213.6*79*48.8mm · (18.5mm thinnest) · Weight (g): 363g
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where i9200 fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Retail checkout and assisted payment
- Service-counter transactions
- Payment pilots with a defined acquiring environment
Key capabilities
- A payment-device entry for an acquiring and application review; certification, country variant and payment stack must be confirmed.
- Portfolio fit: retail payment, assisted checkout and unattended transaction workflows.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform

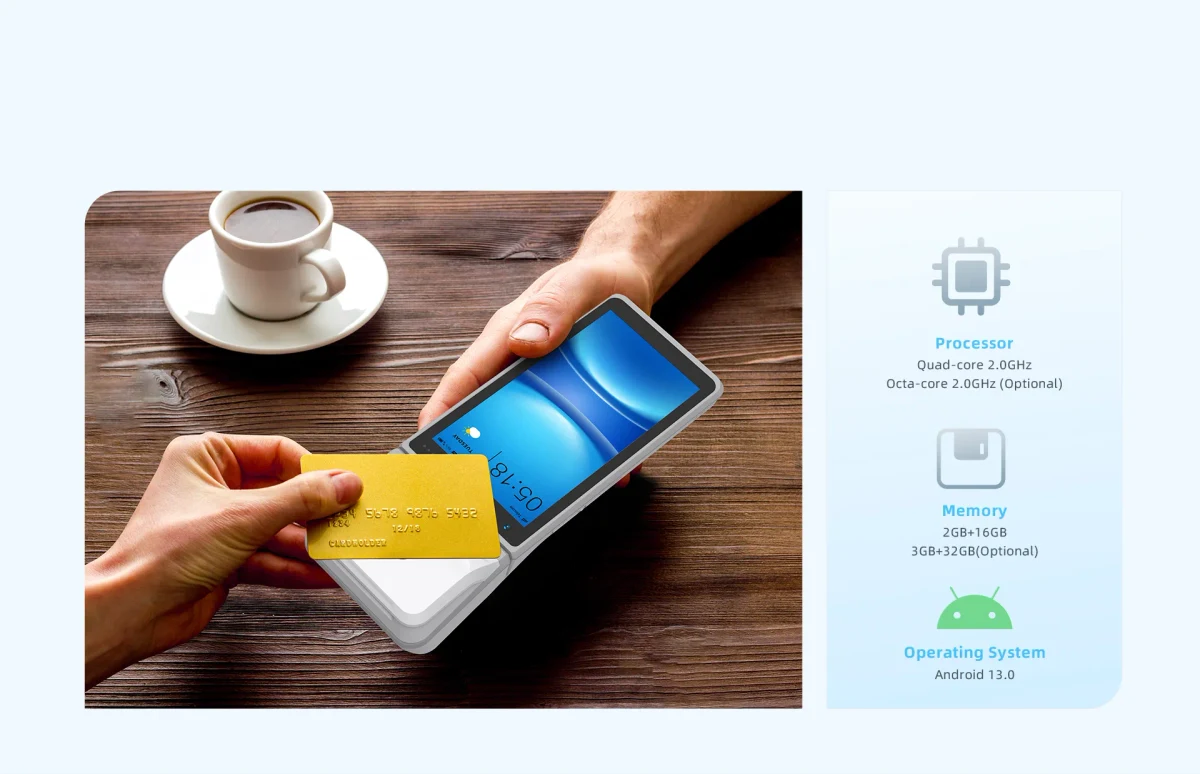

| Processor | Quad-core A53 2.0GHz · Octa-core A53 2.0GHz optional |
|---|---|
| OS | Android 13 |
| Memory | RAM: 2GB ROM: 16GB · RAM: 3GB ROM: 32GB (optional) · Micro SD / TFx1, Up to 128 GB |

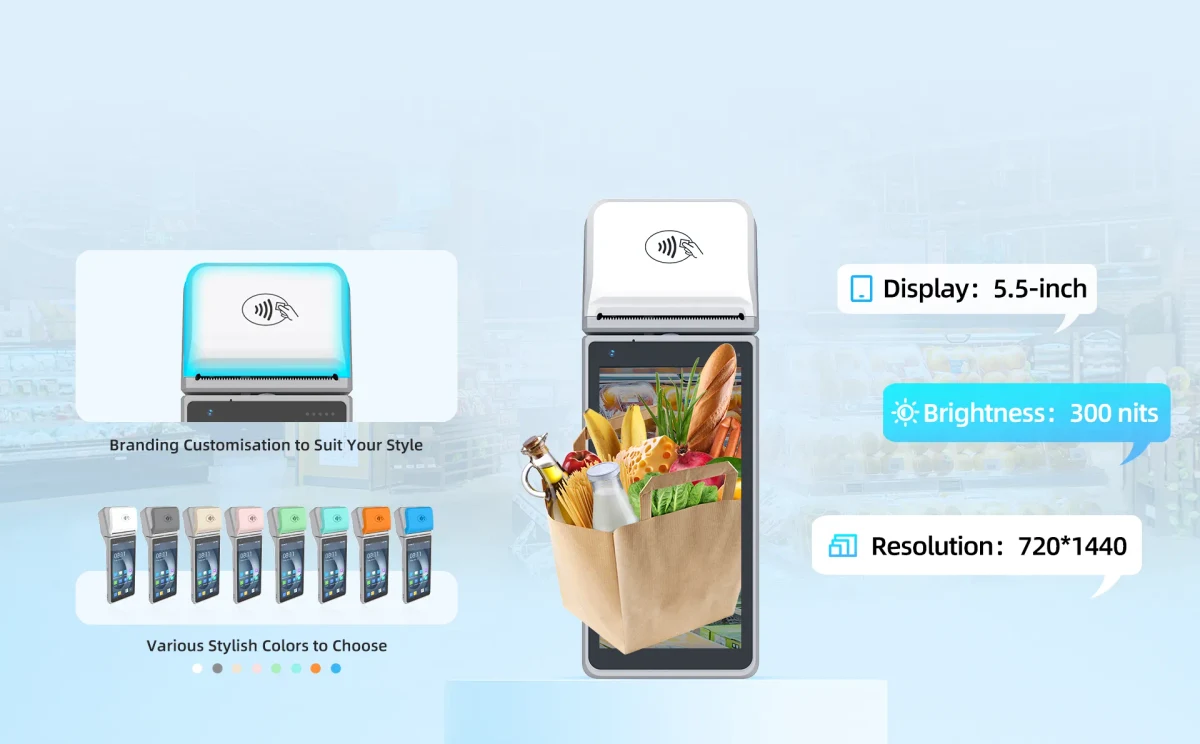

| Display | 5.5" display · (720X1440) |
| Positioning | GPS、A-GPS、 · BEIDOU、GLONASS、 · Galileo |
Data capture

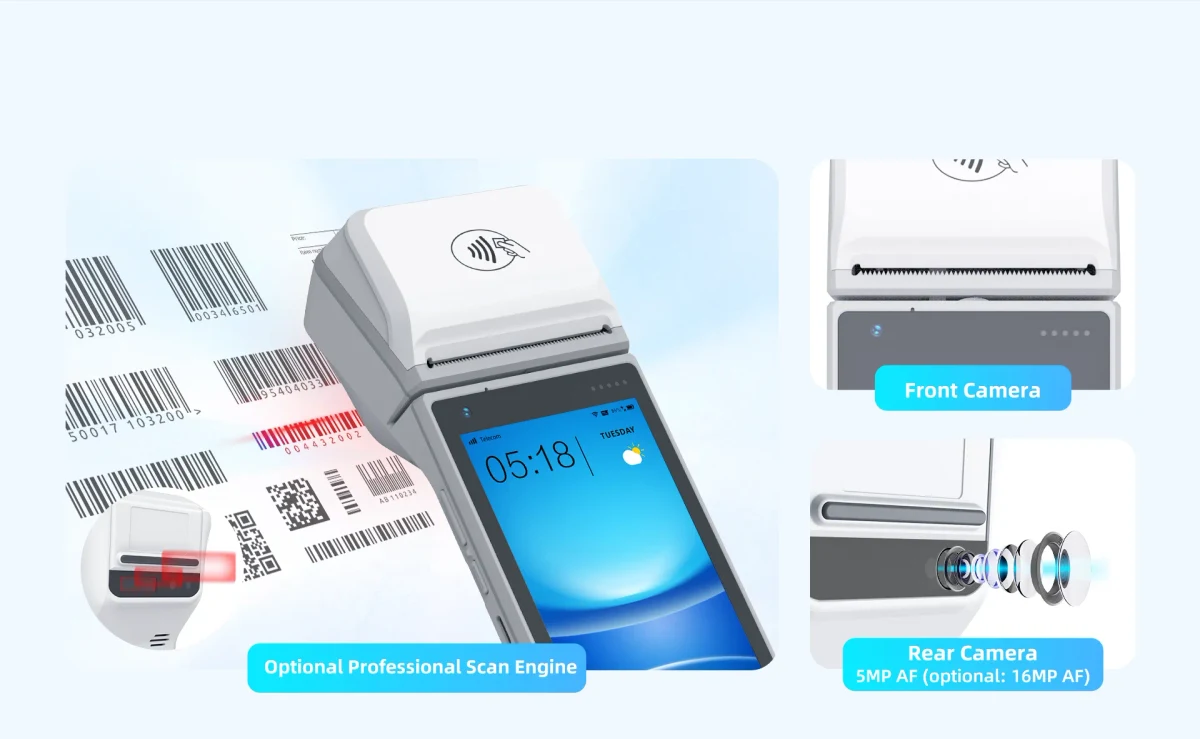

| Camera | No front camera · (2MP FF optional) · Rear 5MP AF · (16MP AF optional) |
|---|---|
| Scanning | Camera decoding, · supporting barcode and · payment QR code; · Optional scan engine |
Power and physical
| Buttons | PWR button, · Vol+/- button |
|---|---|
| Battery | Removable li-polymer battery, · 3.85V / 5000mAh |

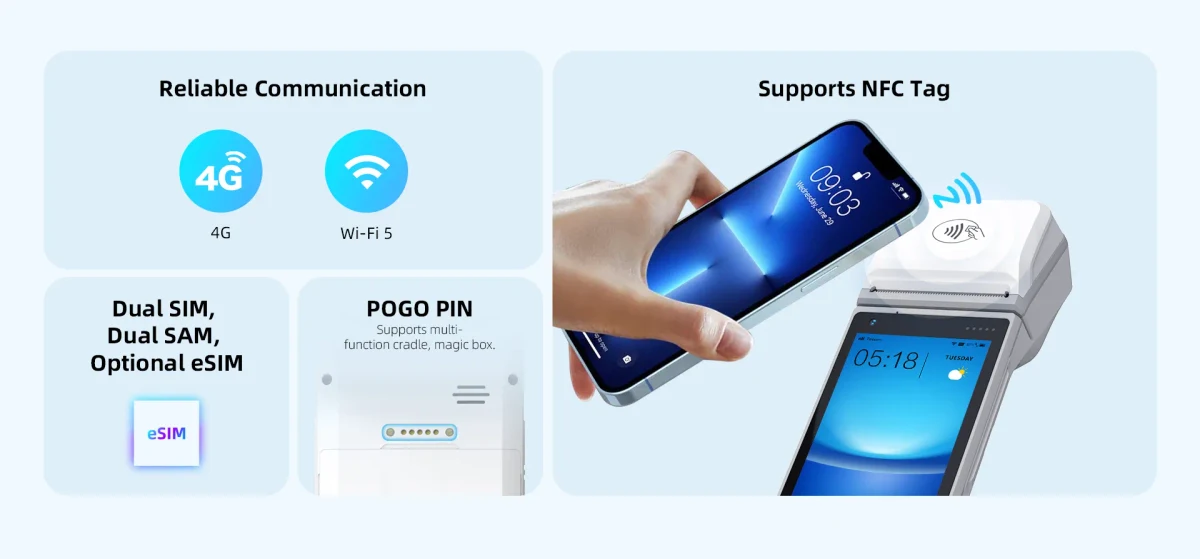

| Interface | 1 x Type-C USB OTG · Pogopin (5pin) |

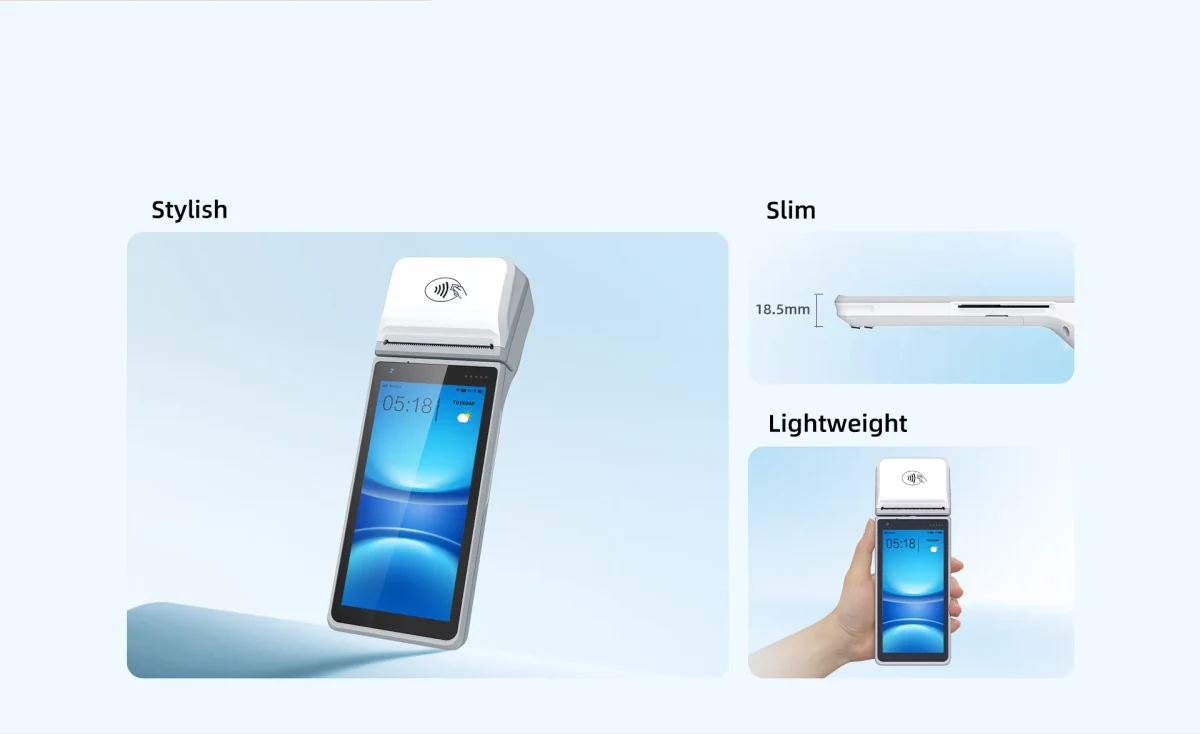

| Dimensions | L x W x H (mm): 213.6*79*48.8mm · (18.5mm thinnest) · Weight (g): 363g |
Environmental
| Environmental | Operating: 0°c~50°c · Storage: -20°C~70°C · Humidity: 5%RH~95%RH · (No condensation) |
|---|
Other configuration
| Audio | Speaker(1W), Buzzer, · No MIC (optional) |
|---|---|
| Adaptor | 5V/2A |

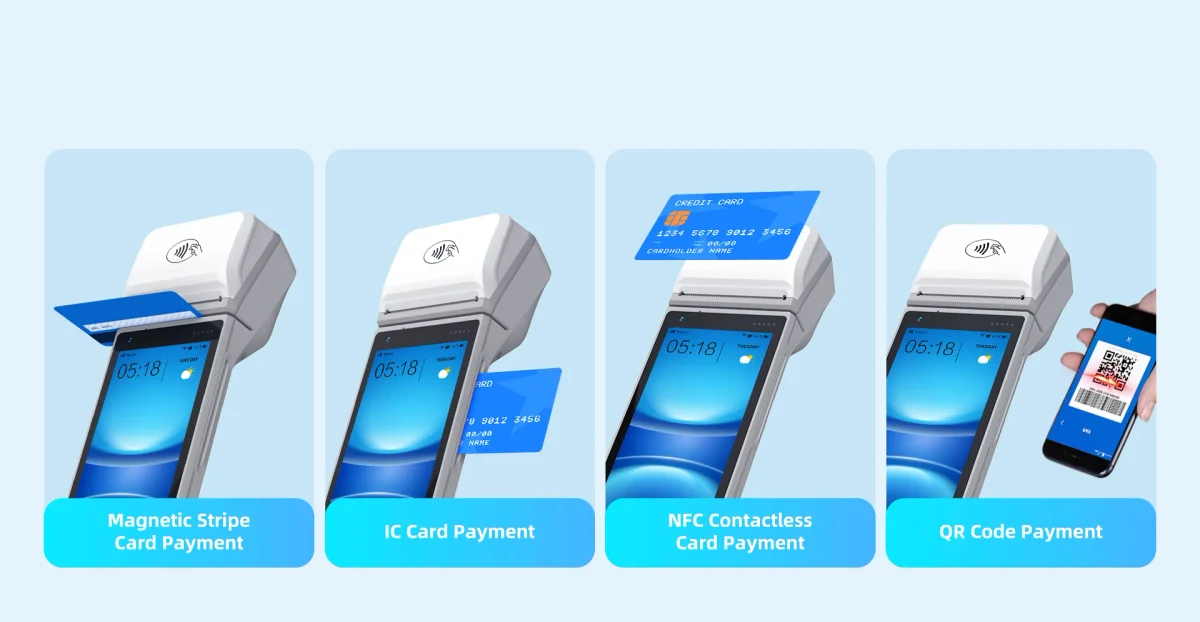

| Payment | Magnetic stripe card · IC Card · Contactless Card |

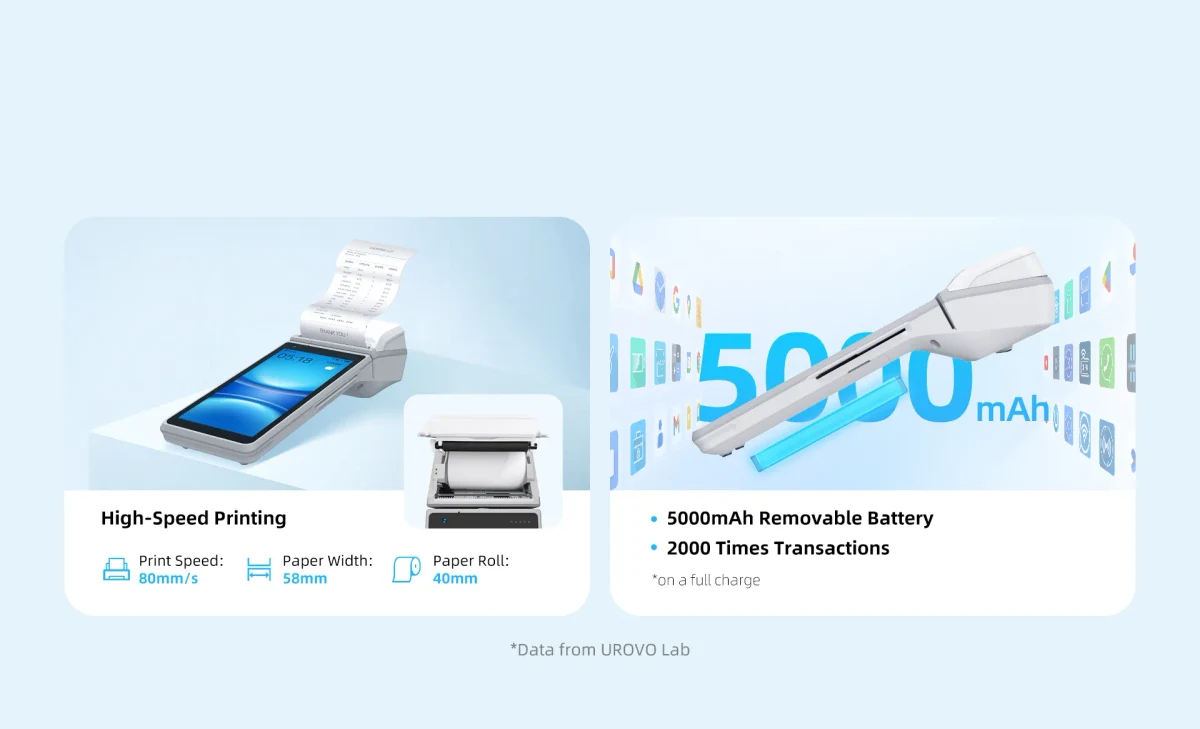

| Printing Specifications | Media roll size: 40mm · Media width: 58mm printing paper · Resolution: 203dpi (8dot/mm) · Print speed: 60~80mm/s · Support 1D/2D barcode printing |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Confirm payment peripherals, connectivity, power, security controls and integration ownership before a quote.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
Buy, validate or customize through RuggedLayer
Make i9200 part of a deployment plan.
Request a sample, quote, application validation or customization discussion directly with our team. The model is carried into the project intake so the conversation starts with useful context.
