SEUIC (Dongji) / Keypad mobile terminals

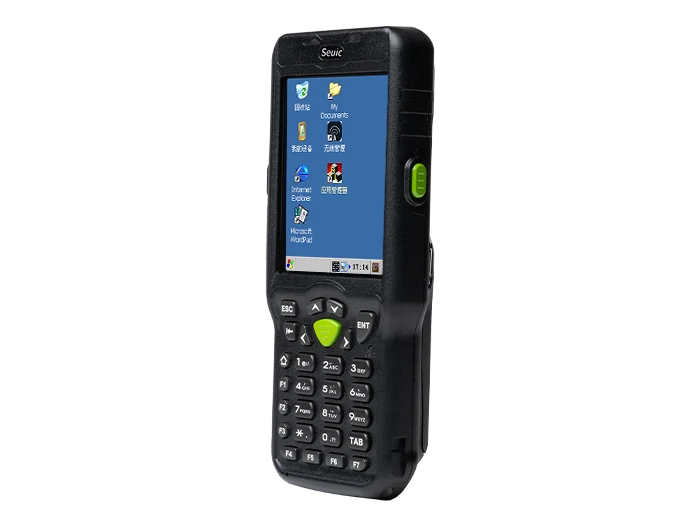

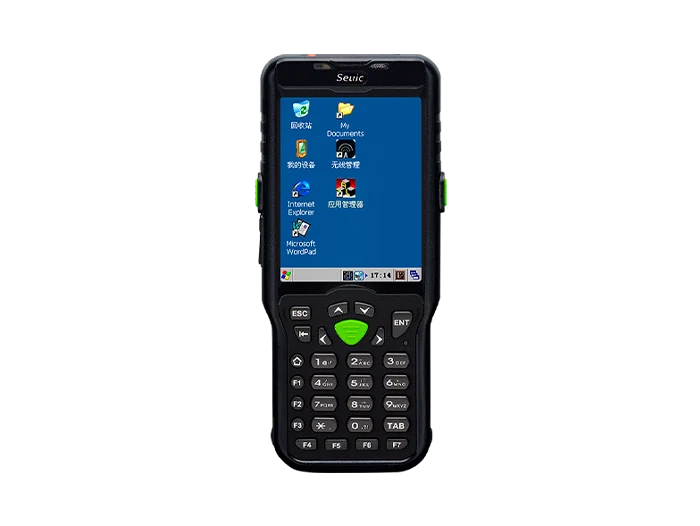

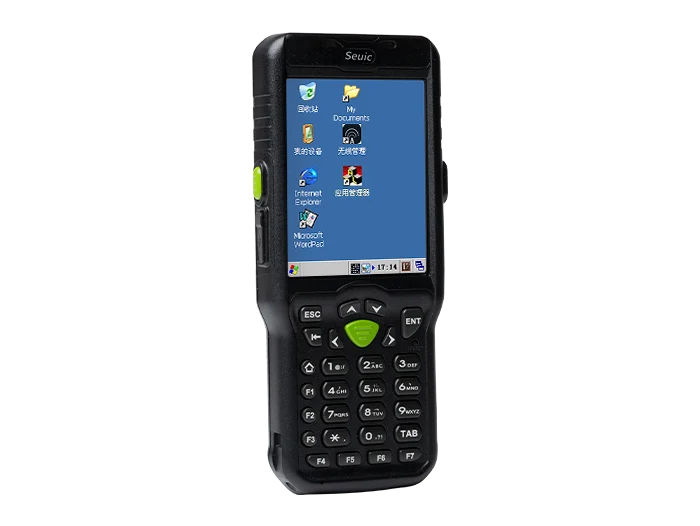

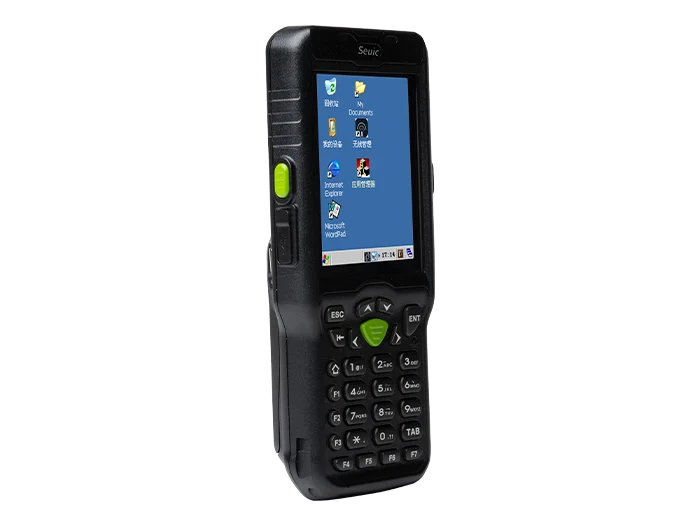

AUTOID 6L-W: Keypad mobile terminals
AUTOID 6L-W is listed in the keypad mobile terminals portfolio for fast operator-led data capture with physical input. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: high-throughput, glove-friendly and scan-intensive operations
- CPU
- ARM Cortex -A8 1GHz
- RAM
- 512MB
- Display
- · 3.5-inch industrial-grade color LCD display, 65536 colors, 240(W)×320(L) (QVGA)
- One-dimensional laser scanning engine (optional)
- Please refer to product specifications for details
- power supply
- Removable 3.7V 3800mAh lithium-ion rechargeable battery, built-in backup battery: non-removable 3.7V/100mAh rechargeable battery
- Drop specifications
- Can withstand multiple drops from a height of 1.5 meters (5 feet)
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where AUTOID 6L-W fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Distribution and sorting
- Manufacturing and line-side work
- Cold-chain or glove-use workflows
Key capabilities
- A keypad mobile terminal entry for repetitive scan work; key layout, scan engine, display and battery variant require review.
- Portfolio fit: high-throughput, glove-friendly and scan-intensive operations.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Display | · 3.5-inch industrial-grade color LCD display, 65536 colors, 240(W)×320(L) (QVGA) |
|---|---|
| CPU | ARM Cortex -A8 1GHz |
| operating system | Microsoft Windows CE 6.0 |
| RAM | 512MB |
| ROM | 512MB |
| User Storage Extension | | | Micro SD Card, compatible with 32GB SDHC compatible |
| Operating temperature | | -20℃ to +50℃ |
| Storage temperature | -40℃ to +60℃ |
| Electrostatic discharge (ESD) | ±15kV air discharge, ±8kV direct discharge |
Data capture
| One-dimensional laser scanning engine (optional) | Please refer to product specifications for details |
|---|---|
| 2D scanning engine (optional) | Please refer to product specifications for details |
| One-dimensional advanced laser scanning engine (optional) | Please refer to product specifications for details |
Connectivity
| Interface/communication | Standard Micro USB interface, supports USB2.0 HighSpeed |
|---|---|
| WIFI | | IEEE 802.11b/g/n, please refer to the product specification for details |
Power and physical
| weight | 313g (including battery, slightly different depending on configuration) |
|---|---|
| power supply | Removable 3.7V 3800mAh lithium-ion rechargeable battery, built-in backup battery: non-removable 3.7V/100mAh rechargeable battery |
| Charge | Special charger 5V voltage, 1.5A current, PC USB charging 0.5A current, intelligently identifies PC and special charger to switch 0.5A/1.5A charging current |
Environmental
| humidity | 5% to 95% RH without condensation |
|---|---|
| Drop specifications | Can withstand multiple drops from a height of 1.5 meters (5 feet) |
Other configuration
| size | 169(H)×72(W)×36(T) mm (width 72mm excluding side buttons) |
|---|---|
| keyboard | 28 keys, LED translucent (buttons with backlight) |
| Audio | | built-in speaker |
| Notification method | Sound, vibrator, LED light indication |
| store | 4GB (built-in and not removable) |
| Waterproof and dustproof industrial grade | IP65 |
| Impact resistance | 1000 times 0.5 meter rolling (equivalent to 2000 impacts) |
| Kind tips | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Scope pistol grip, cold-environment protection, batteries, cradles and operator carry method for the shift.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
Buy, validate or customize through RuggedLayer
Make AUTOID 6L-W part of a deployment plan.
Request a sample, quote, application validation or customization discussion directly with our team. The model is carried into the project intake so the conversation starts with useful context.
