SEUIC (Dongji) / Keypad mobile terminals

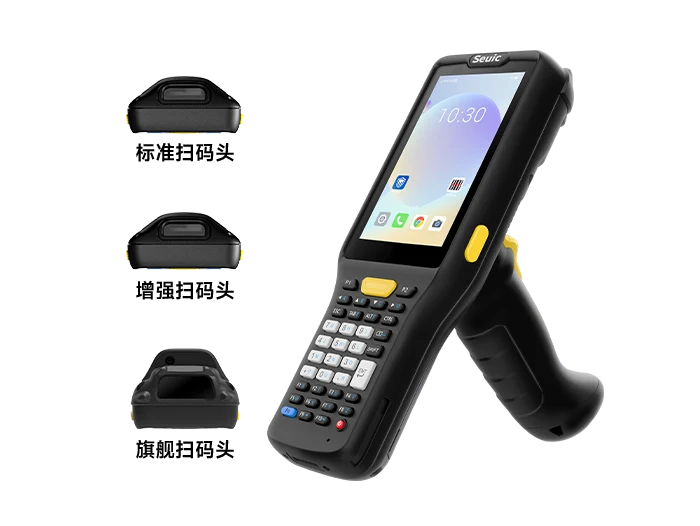

AUTOID Q7-Grip: Keypad mobile terminals
AUTOID Q7-Grip is listed in the keypad mobile terminals portfolio for fast operator-led data capture with physical input. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: high-throughput, glove-friendly and scan-intensive operations
- CPU
- Qualcomm 6115 Octa-Core, 2.0GHz
- Display
- 4.0-inch color (800*480) screen brightness 350nit
- Scan |
- X3P(SR) 1D/2D advanced laser scanning engine · X3P(HD) 1D/2D advanced laser scanning engine · MX6(FR) 1D/2D image scanning engine · S3(FR) 1D/2D image scanning engine
- power supply
- User-removable 5000mAh (18.2Wh) lithium-ion rechargeable battery; hot-swappable battery supported
- Sealing level |
- IP65 sealing (including battery)
- Interface/communication
- Support USB2.0; support OTG (not support display)
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where AUTOID Q7-Grip fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Distribution and sorting
- Manufacturing and line-side work
- Cold-chain or glove-use workflows
Key capabilities
- A keypad mobile terminal entry for repetitive scan work; key layout, scan engine, display and battery variant require review.
- Portfolio fit: high-throughput, glove-friendly and scan-intensive operations.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Display | 4.0-inch color (800*480) screen brightness 350nit |
|---|---|
| touch screen | Capacitive touch, supports glove touch/wet hand operation |
| CPU | Qualcomm 6115 Octa-Core, 2.0GHz |
| operating system | | Android 14.0 |
| Memory | | 4GB RAM/64 GB Flash; (emmc 5.1+ LPDDR4X) |
| Operating temperature | | -20℃ to 50℃/-4℉ to 122℉ |
| Storage temperature | | -40℃ to 70℃/-40℉ to 158℉ (battery not included) |
| Electrostatic discharge (ESD) | | ±15kV air discharge, ±8kV direct discharge |
Data capture
| Interactive Sensor Technology | | Gravity sensor, light sensor, distance sensor, electronic compass, gyroscope |
|---|---|
| Scan | | X3P(SR) 1D/2D advanced laser scanning engine · X3P(HD) 1D/2D advanced laser scanning engine · MX6(FR) 1D/2D image scanning engine · S3(FR) 1D/2D image scanning engine |
| Camera | | | Rear 13 million pixels (auto focus); · LED flash can generate balanced white light; supports flashlight mode |
| Near field communication (NFC) | Supports ISO15693, ISO14443A/B (without encryption protocol), ISO14443A tags with encryption protocol (Mifare one S50, S70 and compatible cards); supports NFC protocol; supports ID cards |
Connectivity
| SIM card | | Mini SIM*1 |
|---|---|
| Interface/communication | Support USB2.0; support OTG (not support display) |
| Interface/Communication | | Type C USB interface; supports USB2.0; supports OTG (does not support display) |
| GPS | Three-in-one GPS, Beidou, and GLONASS, supporting a-GPS; single-frequency GPS (L1) |
| wireless connection | IEEE 802.11a/b/g/n/ac (2.4G/5G dual-band WIFI6-Ready) without FEM |
Power and physical
| weight | 420g/14.82oz (including battery) |
|---|---|
| power supply | User-removable 5000mAh (18.2Wh) lithium-ion rechargeable battery; hot-swappable battery supported |
| button | Power; two dedicated scan buttons |
Environmental
| Humidity | | 5% to 95% RH without condensation |
|---|---|
| Sealing level | | IP65 sealing (including battery) |
| Roll Specs | | Withstands 1,000 drops from 1.6 feet/0.5 meters at room temperature without protective case |
| Drop specifications | | Terminal only withstands a 6 ft. (1.8 m) drop to marble |
Other configuration
| size | 8 inches (length) x 2.84 inches (width) x 1.38 inches (height) · 203 mm long x 72 mm wide x 35 mm high (width 70 mm excluding side buttons) |
|---|---|
| expansion slot | User-accessible Micro SD Card, supports up to 256GB |
| Internet connection | | WWAN 4G 、WLAN |
| Notification | | Alert sound; multi-color LED; vibration (tactile feedback) |
| Keyboard | | On-screen keyboard + physical keys |
| Audio | | Built-in single speaker (1.5W); single microphone; supports TYPE-C digital headphones |
| radio frequency band | | · GSM: Dual Band(900/1800) · TD-SCDMA: Band34, Band39 · WCDMA: Band1, Band5, Band8 · CDMA 1x /EVDO: BC0 · TDD-LTE: Band34, Band38, Band39, Band40, Band41(200MHZ) · FDD-LTE: Band1, Band3, Band 5, Band7, Band 8, Band 20, Band28 · Support 4G downlink CA: B1+B3, B39+B41; · Support VOLTE; · Support dedicated network (LTE) |
| data rate | | 5 GHz: 802.11a/n/ac --- 20 MHz, 40 MHz, 80 MHz data rates up to 360 Mbps · 2.4 GHz: 802.11b/g/n --- 20 MHz, 40 MHz data rates up to 160 Mbps |
| Work channel | | Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 · Channel 36-165 (5180-5825 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 · Channel bandwidth: 20 MHz, 40 MHz, 80 MHz · Actual operating channels/frequencies and bandwidths vary depending on regulatory rules and certification bodies |
| Security and Encryption | | WPA、WPA2、WPA3 |
| Kind tips | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Scope pistol grip, cold-environment protection, batteries, cradles and operator carry method for the shift.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
Buy, validate or customize through RuggedLayer
Make AUTOID Q7-Grip part of a deployment plan.
Request a sample, quote, application validation or customization discussion directly with our team. The model is carried into the project intake so the conversation starts with useful context.
