SEUIC (Dongji) / Wearable terminals

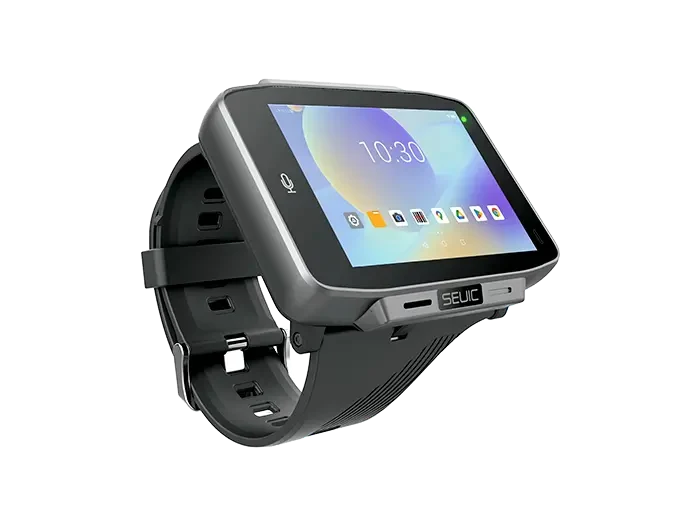

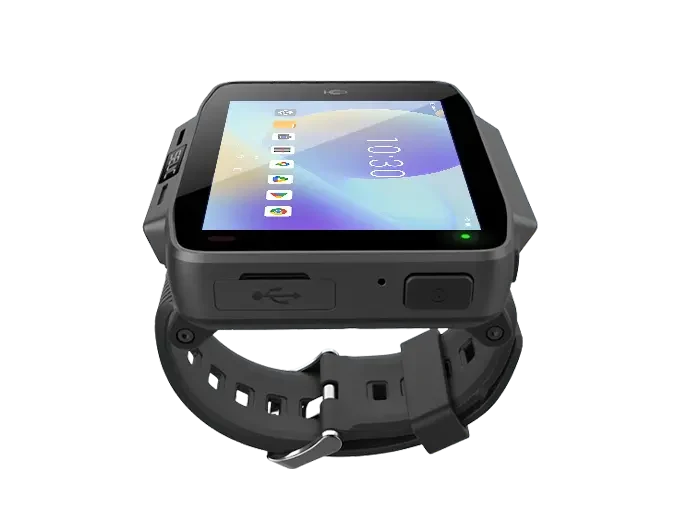

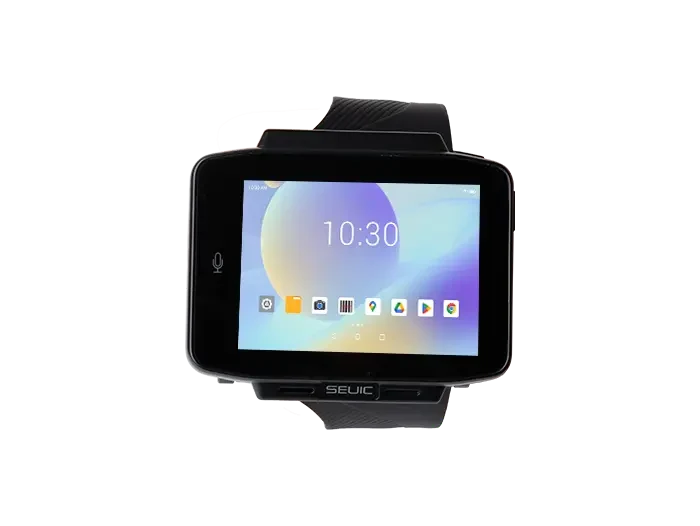

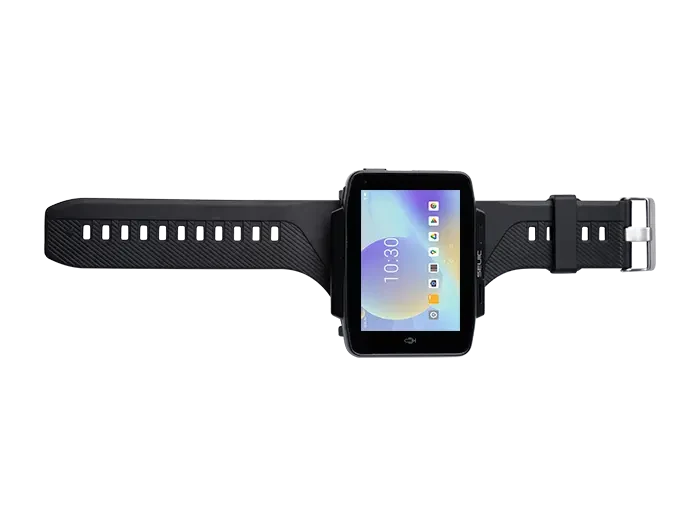

AUTOID Swatch: Wearable terminals
AUTOID Swatch is listed in the wearable terminals portfolio for wearable worker and barcode interactions. RuggedLayer can confirm the exact variant and project fit before quotation.
Best fit: hands-free worker identification, scan and task workflows
- CPU
- MTK 4 core 2.0GHz
- Display
- 2.8-inch full-viewing LCD display, capacitive 3-point touch, 640×480, maximum brightness 350nit
- power supply
- Non-removable 3300mAH lithium-ion rechargeable battery, 500 cycles, capacity greater than 80%
- Drop specifications |
- 1.2m marble drop, 6 sides and 5 rounds, 30 times
- WIFI
- IEEE 802.11a/b/g/n/ac (2.4G/5G dual-band WIFI), please refer to the product specification for details
- weight
- 100g (excluding strap)
Final SKU, regional configuration and commercial terms are confirmed before quotation.
Selection context
Where AUTOID Swatch fits
Use the workload and operating conditions to decide whether this platform belongs in the shortlist.
Best for
- Picking and replenishment
- Worker identification and task prompts
- Inspection and mobile ticketing
Key capabilities
- A wearable terminal entry; host connectivity, wearing position, battery cycle and task UI need validation.
- Portfolio fit: hands-free worker identification, scan and task workflows.
- Exact OS, interfaces, accessories and regional configuration require confirmation.
Product configuration
Key specifications
Review the available model configuration, then confirm the exact combination required for your application and target market.
Platform
| Display | 2.8-inch full-viewing LCD display, capacitive 3-point touch, 640×480, maximum brightness 350nit |
|---|---|
| CPU | MTK 4 core 2.0GHz |
| operating system | | Android 9.0 |
| RAM | | LPDDR3 3GB |
| ROM | | 32GB |
| Operating temperature | | -20℃ to +60℃ |
| Storage temperature | | -30℃ to +70℃ |
| Electrostatic discharge (ESD) | | ±15kV air discharge, ±8kV direct discharge |
Data capture
| Sensor | | Acceleration sensor, proximity light sensor, electronic compass, gyroscope, barometer, supports raising your hand to turn on the screen |
|---|
Connectivity
| GPS | | GPS+GLONASS+Beidou+Galilieo, support AGPS |
|---|---|
| WIFI | IEEE 802.11a/b/g/n/ac (2.4G/5G dual-band WIFI), please refer to the product specification for details |
Power and physical
| weight | 100g (excluding strap) |
|---|---|
| power supply | Non-removable 3300mAH lithium-ion rechargeable battery, 500 cycles, capacity greater than 80% |
| button | 2 buttons (power, custom), 1 million times lifespan |
| Interface | | TYPE-C |
Environmental
| Humidity | | 5% to 95% RH non-condensation |
|---|---|
| Drop specifications | | 1.2m marble drop, 6 sides and 5 rounds, 30 times |
Other configuration
| size | 54.7×80×17mm |
|---|---|
| Audio | | Built-in speaker, 8 ohms 1 watt*1, built-in dual microphones |
| Vibration motor | | Support |
| Waterproof and dustproof industrial grade | | IP67 |
| Image acquisition | | Rear camera 13 million pixels |
| WWAN | | Please refer to product specifications for details |
| Kind tips | For current product information and project support, contact RuggedLayer. |
Configurations vary by model revision and market. RuggedLayer confirms the selected SKU, accessories and applicable certifications in the quotation.
Deployment planning
Configure the complete system
A device choice is only useful when software, operator behavior, power and regional constraints are included in the same decision.
Deployment considerations
- Confirm the exact model variant, software image, interfaces and supported accessories before ordering.
- Validate the workflow, environment, network, power and operator interaction on the target configuration.
- Confirm country scope, certifications, frequency bands and commercial availability in the quotation.
Accessories and configuration
- Confirm straps, wearable hygiene, charging, host pairing and shift handover requirements.
Before you order
Validate the exact configuration with RuggedLayer.
Send us the workflow, target country, software constraints and estimated volume. We will help confirm the right variant, test scope and commercial next step before you commit to a deployment.
- 01
Share the target application, workflow, country and expected deployment volume with RuggedLayer.
- 02
Test the exact configuration with the intended host system, scan or capture method and device-management policy.
- 03
Approve the final variant, accessory package and commercial scope before placing the purchase order.
Buy, validate or customize through RuggedLayer
Make AUTOID Swatch part of a deployment plan.
Request a sample, quote, application validation or customization discussion directly with our team. The model is carried into the project intake so the conversation starts with useful context.
